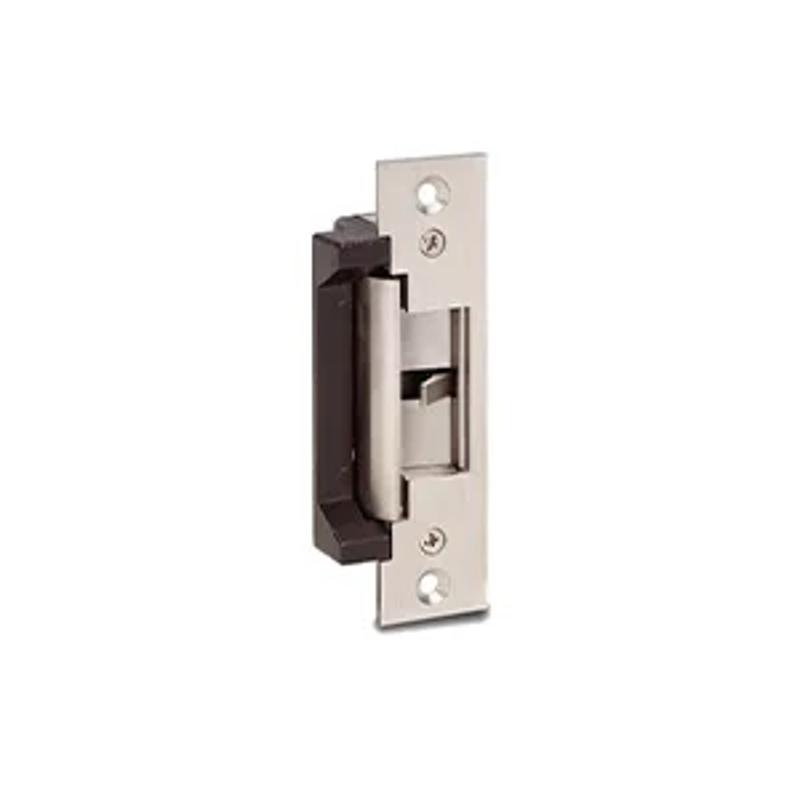

Hager 2925 Electric Strike — 5/8" Cylindrical Latch, 12/24VDC, Field-Selectable Failsafe/Failsecure
The Hager 2925 is a commercial-grade electric strike designed for cylindrical latch openings with a 5/8" latch throw. Operating on 12 or 24VDC, this strike integrates cleanly into new or existing access-control systems and ships with a 4-7/8" square-corner stainless steel faceplate in US32D (satin stainless) finish. Its field-selectable failsafe/failsecure operation means installers can configure the correct egress mode on-site without ordering a separate SKU — a key advantage in commercial, education, and healthcare projects where code requirements and AHJ preferences vary by opening.
Institutional Grade Features & Benefits
- Field-Selectable Fail Mode: Configurable on-site as failsafe (unlocks on power loss — egress-friendly) or failsecure (remains locked on power loss — security-priority), eliminating the need to pre-order separate models for different applications.
- Dual-Voltage 12/24VDC Input: Compatible with virtually any low-voltage access-control power supply, reducing integration complexity and inventory requirements for multi-opening projects.
- 5/8" Cylindrical Latch Compatibility: Engineered specifically for standard cylindrical latchbolts — the most common lock format in commercial office, healthcare corridor, and educational facility doors.
- 4-7/8" Square-Corner Stainless Steel Faceplate: The included faceplate (US32D) fits standard door-frame preps and coordinates with stainless finish hardware throughout the opening.
- US32D Satin Stainless Finish: Corrosion-resistant and low-maintenance — well-suited for high-traffic and institutional environments where appearance and durability both matter.
- Hager Commercial Quality: Hager is an established manufacturer with a broad commercial hardware portfolio; the 2925 carries a 1-year manufacturer warranty.
Typical Applications
- Access-controlled corridors and suite entries in commercial office buildings
- K–12 and higher education classroom and administrative doors with cylindrical locksets
- Healthcare and medical office openings requiring card-reader or keypad integration
- Retail and light industrial entries where a cost-effective electrified strike is preferred over a full mortise electric lock
- Retrofit access-control upgrades on existing cylindrical-latch door preps
Technical Details
| Feature | Details |
|---|---|
| Model Number | Hager 2925 |
| Part Type | Electric Strike |
| Latch Compatibility | Cylindrical — 5/8" Throw |
| Fail Mode | Field-Selectable Failsafe / Failsecure |
| Voltage | 12/24 VDC |
| Faceplate | 4-7/8" Square-Corner Stainless Steel |
| Finish | US32D (Satin Stainless) |
| Warranty | 1-Year Manufacturer Warranty |
| Brand | Hager |
| Fail Safe/Fail Secure | Field Selectable |
| Faceplate Options | 4-7/8" Sq Corner SS |
| Voltage | 12/24 VDC |
| Electric Strike Lock Type Use | Cylindrical - 5/8" Throw |
| Part Type | Electric Strike |
