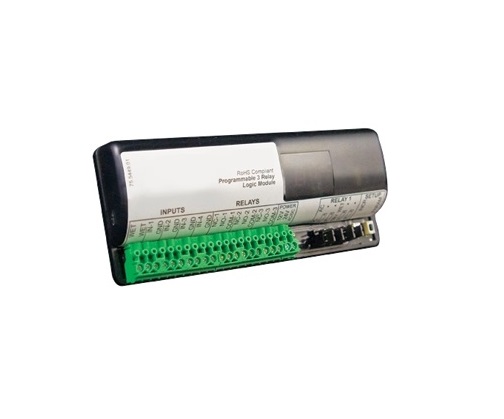

Hager 2-659-0240 Programmable Relay & Door Sequencer
The Hager 2-659-0240 is a sophisticated, multi-function logic module designed to manage complex door sequences and timing requirements. Whether you are coordinating automatic door operators, managing access control systems, or setting up single-occupancy restroom logic, this programmable relay provides a single, intuitive solution.
Engineered for versatility, the 2-659-0240 features three integrated relays and a wide array of pre-programmed functions. It eliminates the need for multiple external timers and relays by providing built-in surge suppression, making it the ideal choice for installations involving electric strikes, magnetic locks, and automated entry systems.
Key Features & Advanced Logic
- Three Integrated Relays: Includes two 3-Amp relays and one 1-Amp relay, allowing for the simultaneous control of locks, operators, and signaling devices.
- Built-in Surge Suppression: Protects the unit from voltage spikes, specifically designed to handle the back-EMF generated by electric locking hardware.
- Intuitive Programming: Easy-to-set delay and hold times ranging from momentary pulses up to 60 seconds per relay.
- Comprehensive Function Library: Features specialized modes for Normally Locked (nL) and Normally Unlocked (nU) restrooms, interlock timers, and sequence inhibitors.
- Compact Footprint: The slim, clear ABS plastic housing allows for easy mounting inside door operator headers or small electrical enclosures.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 2-659-0240 |
| Supply Voltage | 12 to 24 V AC/DC |
| Power Consumption | 30 to 130 mA |
| Relay #1 (Dry) | 3 A @ 24 VAC / 30 VDC |
| Relay #1 (Wet) | 1 A @ 5-24 VAC/VDC |
| Relay #2 | 3 A @ 24 VAC / 30 VDC |
| Relay #3 | 1 A @ 24 VAC / 30 VDC |
| Operating Temp | -15°F to 150°F |
| Housing Material | Clear ABS Plastic |
| Dimensions | 1.0" H x 5.2" W x 2.2" D |
| Warranty | 1-Year Manufacturer Warranty |
Pre-Programmed Logic Functions
The Hager 2-659-0240 is pre-loaded with industry-standard logic sequences, including:
- Timer & Latching: Simple timer (10) and Ratchet/Latching (11) for toggle-on/toggle-off operation.
- Sequencing: 2-relay and 3-relay sequencers (28, 36, 37) for coordinating locks and operators.
- Security & Interlock: Interlock timers (50) and Sequence Inhibitors (22) using door position inputs.
- Specialty Modes: Dedicated modes for Day/Night settings and high-security restroom privacy controls.
Professional Installation Applications
The Hager 2-659-0240 is the preferred sequencer for DoorwaysPlus.com customers in medical facilities, schools, and commercial office buildings. It ensures that automatic doors open only after the electric lock has fully retracted, preventing hardware damage and ensuring ADA-compliant accessibility.
| Brand | Hager |
