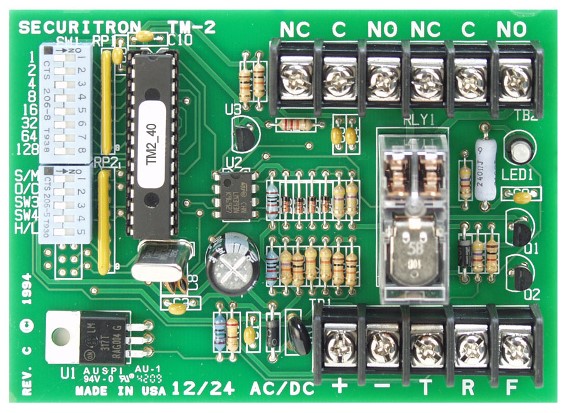

Securitron TM-2 Time Master II Multi-Function Timer

The Securitron TM-2 Time Master II is a premium, industrial-duty multi-function timer engineered for precision time sequencing in high-security environments. Ideally suited for complex applications like bank vaults and ATM security, the TM-2 allows for exact delay settings ranging from 1 to 255 seconds or minutes. By utilizing stackable DIP switch settings, installers can easily customize the timing logic to meet the most demanding architectural specifications. This versatile module acts as a critical bridge in your access control system, ensuring that electrified hardware operates only within the designated authorized windows.

Designed for maximum adaptability, the Securitron TM-2 supports seven operating modes, including ON-delay, OFF-delay, toggle, and cyclic functionality. Its high-capacity 5 Amp DPDT relay provides robust control for electric locks, while the integrated flashing LED offers immediate visual feedback on remaining time or alert status. Built to withstand rigorous use and backed by the MagnaCare® lifetime replacement warranty, this dual-voltage timer is the professional choice for facilities requiring a reliable, tamper-resistant solution for localized time-based security control.

Product Features

• Advanced Multi-Function Logic: Supports seven operating modes for sophisticated delay or time sequencing.

• Precision Timing: Easy-to-configure DIP switches select exact delay times from 1 to 255 seconds or minutes.

• Universal Triggering: Flexible input accepts signals from either Normally Open (N/O) or Normally Closed (N/C) switches.

• Visual Status Indication: Built-in flashing LED provides real-time visual tracking of time remaining or alarm alerts.

• High-Capacity Output: Features a robust 5 Amp DPDT relay for controlling multiple security devices simultaneously.

• Industrial Reliability: Premium circuitry designed for high-stakes environments like financial institutions and high-value storage.

• MagnaCare® Warranty: Includes the industry-standard lifetime, no-fault, no-questions-asked replacement guarantee.


Technical Specifications

• Operating Voltage: Dual-voltage support for 12 or 24 VDC/VAC.

• Current Draw: Maximum draw of 170 mA.
• Relay Rating: 5 Amp DPDT (Double Pole Double Throw) dry contacts.

• Time Range: User-selectable range of 1-255 seconds or 1-255 minutes.

• Operating Temperature: Wide environmental range from 32°F to 110°F (0°C to 43°C).
• Dimensions: Compact footprint at 4-1/8" x 3-3/16" x 1-3/4" for easy enclosure mounting.

​
