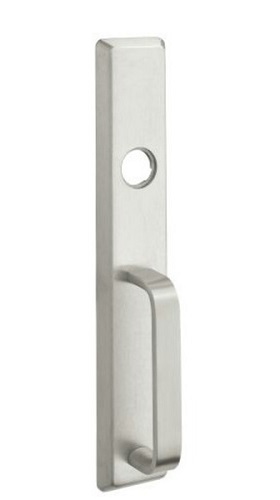

Accentra 632F Night Latch Exit Device Trim | 630F Series Wide Pull | Grade 1
The Accentra 632F Night Latch Exit Device Trim (formerly Yale) is a high-intent, heavy-duty architectural solution designed for maximum security and ease of use. This Grade 1 certified pull trim features a Night Latch (ANSI 03) function, where the exterior lever is replaced by a rugged grip pull, and entry is granted only by key. This configuration ensures the door remains locked at all times from the exterior, making it the premier choice for back-of-house service doors, stairwells, and secure perimeter exits.
Crafted with a solid wide escutcheon plate, the 632F is engineered to withstand physical attacks. Its beveled sides are specifically designed to deflect prying tools, while the through-bolt mounting creates a high-strength "sandwich" attachment directly to the exit device.
Industrial Strength & Security Features
- Heavy-Duty Grip Pull: Features a robust 6-7/16" center-to-center pull with a 2-1/8" projection, providing a substantial and ergonomic grip for high-traffic use.
- ANSI/BHMA Grade 1 Certified: Rigorously tested to exceed A156.3 standards, ensuring superior mechanical durability and long-term reliability in demanding institutional environments.
- Vandal-Resistant Design: The solid wide escutcheon (2-3/4" x 15-1/2") covers standard door preps and features beveled edges to improve attack resistance.
- Night Latch Security: The key retracts the latchbolt for entry, but the door relocks automatically once the key is removed, ensuring the opening is never left unsecured.
- Field Reversible Handing: Shipped as Right Hand Reverse (RHR), this hardware is fully field reversible to match any door swing during installation.
- Premium Stock Finishes: Available in US32D (630) Satin Stainless Steel and Black Suede Powder (BSP) for maximum corrosion resistance and a professional aesthetic.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 632F |
| Function | Night Latch (ANSI 03) - Key Retracts Latch |
| Trim Series | 630F Wide Pull Trim |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Cylinder Type | Less Rim Cylinder (Required for operation) |
| Plate Dimensions | 2-3/4" x 15-1/2" x 5/8" (70mm x 394mm x 16mm) |
| Pull Dimensions | 6-7/16" Centers x 2-1/8" Projection |
| Standard Door Thickness | 1-3/4" (44mm) |
| Compatibility | Accentra (Yale) 7000, 6000, 2100 Series Rim |
| Warranty | 5-Year Limited Warranty |
Compatibility & Installation Note
The Accentra 632F Trim is specifically engineered for perfect synergy with Accentra (Yale) 7000, 6000, and 2100 Series Rim Exit Devices. Because this trim is furnished Less Rim Cylinder, you must install a compatible 6-pin rim cylinder to complete the assembly. For maximum security, the design allows for a flush cylinder fit, reducing the risk of cylinder pulling or tampering.
For standard 1-3/4" thick doors, all necessary mounting hardware is included for a permanent, through-bolted installation. If your facility requires specialized finishes such as Bright Brass (605) or White Suede Powder (WSP), please contact us for a custom quote.
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - 7000 Series, Accentra - 6000 Series, Accentra - 2100 Series |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Exit Device Trim Function | Storeroom |
| Trim Design | Grip Pull |
