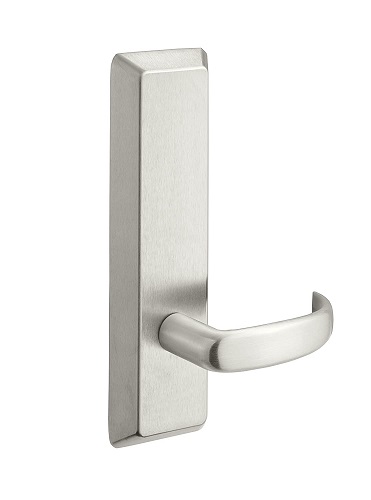

Accentra PB 628F Passage/Dummy Exit Device Trim | 620F Series Wide Escutcheon | Grade 1
The Accentra PB 628F Passage/Dummy Exit Device Trim (formerly Yale) is a premium, high-traffic architectural solution designed for commercial openings where keyed security is not required. This Grade 1 certified escutcheon trim is engineered for maximum durability and vandal resistance, featuring a free-wheeling lever mechanism that allows the handle to rotate freely when locked, preventing internal damage from forced entry attempts.
Crafted with a solid forged/cast escutcheon, the 628F is ideal for heavy-duty institutional use in schools, hospitals, and office complexes. The Pacific Beach (PB) lever style provides a modern, square-profile aesthetic that is fully ADA compliant. With its beveled sides designed to improve attack resistance and through-bolt mounting for superior strength, this trim offers the ultimate protection for wide stile and flush doors.
Industrial Strength & Modern Security Features
- Vandal-Resistant Free-Wheeling Lever: The internal clutch mechanism allows the lever to move without engaging the latch, protecting the hardware from breakage due to excessive force.
- ANSI/BHMA Grade 1 Certified: Rigorously tested to exceed A156.3 standards, ensuring millions of successful cycles in high-frequency environments.
- High-Security Construction: The through-bolted design creates a secure "sandwich" attachment with the exit device, while the beveled escutcheon edges deflect prying tools.
- Versatile Passage & Dummy Function: Ideal for non-secured areas requiring free entry or for use as a decorative pull on the inactive leaf of a pair of doors.
- Field Reversible Handing: Ships as Right Hand Reverse (RHR) but is completely field reversible to accommodate any door swing during installation.
- Premium US32D Finish: Stocked in Satin Stainless Steel (630) for superior corrosion resistance and a clean, professional appearance.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | PB 628F |
| Function | Passage (ANSI 14) or Dummy |
| Trim Series | 620F Series Wide Escutcheon |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Lever Style | PB (Pacific Beach) - ADA Compliant |
| Lever Action | Free-Wheeling (Clutch Mechanism) |
| Dimensions | 3" x 10-1/4" x 13/16" (76mm x 260mm x 19mm) |
| Standard Door Thickness | 1-3/4" (44mm) |
| Compatibility | Accentra (Yale) 7000, 6000, 2100 Series |
| Warranty | 10-Year Limited Warranty |
Installation & System Compatibility
The Accentra PB 628F Trim is specifically engineered for perfect synergy with Accentra (Yale) 7000, 6000, and 2100 Series Rim Exit Devices. For standard 1-3/4" thick doors, all necessary mounting hardware is included for a permanent, through-bolted installation. If you require this hardware for thicker doors or specialized finishes like Black Suede Powder (BSP), please contact us for a custom quote and lead time information.
To complete your door assembly, visit DoorwaysPlus.com to browse our inventory of matching Rim Exit Devices or Surface Vertical Rods. We also offer the Augusta (AU) lever style if your facility requires a more traditional, curved handle profile.
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - 7000 Series, Accentra - 6000 Series, Accentra - 2100 Series |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Exit Device Trim Function | Passage, Dummy |
| Trim Design | PB - Pacific Beach |
