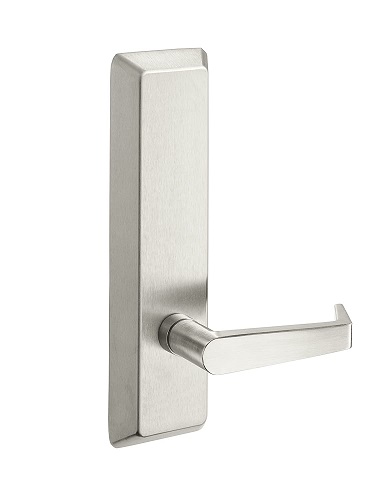

Accentra AU 628F Passage/Dummy Exit Device Trim | 620F Series Wide Escutcheon | Grade 1
The Accentra AU 628F Passage/Dummy Exit Device Trim (formerly Yale) is a premium, high-traffic architectural solution designed for commercial openings where keyed security is not required. This Grade 1 certified escutcheon trim is engineered for maximum durability and vandal resistance, featuring a free-wheeling lever mechanism that allows the handle to rotate freely when the door is secured, significantly reducing the risk of internal damage from forced entry or excessive force.
Crafted with a solid forged/cast escutcheon, the 628F is ideal for heavy-duty institutional use in schools, hospitals, and office complexes. The Augusta (AU) lever style provides a clean, ergonomic, and ADA-compliant grip. With beveled sides specifically designed to improve attack resistance and through-bolt mounting for superior structural integrity, this trim offers ultimate protection for wide stile and flush doors.
Industrial Strength & Security Features
- Vandal-Resistant Free-Wheeling Lever: The internal clutch mechanism allows the lever to move without engaging the latch, protecting the hardware from breakage due to vandalism.
- ANSI/BHMA Grade 1 Certified: Rigorously tested to exceed A156.3 standards, ensuring millions of successful cycles in the most demanding high-frequency environments.
- High-Security Construction: The through-bolted design creates a secure "sandwich" attachment with the exit device, while the beveled escutcheon edges deflect prying tools and reduce leverage for attacks.
- Versatile Passage & Dummy Function: Ideal for non-secured areas requiring free entry or for use as a decorative pull on the inactive leaf of a pair of doors.
- Field Reversible Handing: Shipped as Right Hand Reverse (RHR), this hardware is fully field reversible to match any door swing during installation.
- Premium Architectural Finishes: Stocked in Satin Stainless Steel (630) and Black Suede Powder (BSP) for superior corrosion resistance and a modern professional appearance.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | AU 628F |
| Function | Passage (ANSI 14) or Dummy |
| Trim Series | 620F Series Wide Escutcheon |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Lever Style | Augusta (AU) - ADA Compliant |
| Lever Action | Free-Wheeling (Clutch Mechanism) |
| Dimensions | 3" x 10-1/4" x 13/16" (76mm x 260mm x 19mm) |
| Standard Door Thickness | 1-3/4" (44mm) |
| Compatibility | Accentra (Yale) 7000, 6000, 2100 Series |
| Warranty | 10-Year Limited Warranty |
Installation & System Compatibility
The Accentra AU 628F Trim is specifically engineered for perfect synergy with Accentra (Yale) 7000, 6000, and 2100 Series Rim Exit Devices. For standard 1-3/4" thick doors, all necessary mounting hardware is included for a permanent, through-bolted installation. If your project requires specialized finishes such as Bright Brass (605) or Bright Stainless Steel (629), please contact us for a custom quote and lead time information.
To complete your door assembly, you can browse matching Rim Exit Devices or Surface Vertical Rods on DoorwaysPlus.com. We also offer the Pacific Beach (PB) lever style if your facility requires a more contemporary, square-profile handle design.
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - 7000 Series, Accentra - 6000 Series, Accentra - 2100 Series |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Exit Device Trim Function | Passage, Dummy |
| Trim Design | AU - Augusta Lever |
