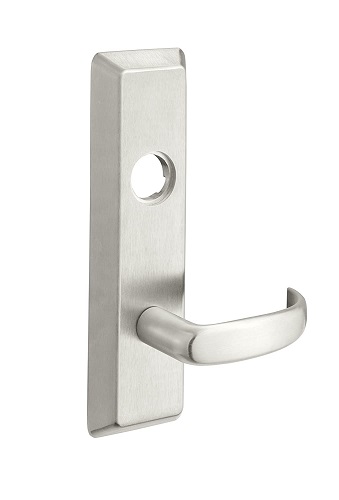

Accentra PB 626F Classroom/Storeroom Exit Device Trim | 620F Series Wide Escutcheon | Grade 1
The Accentra PB 626F Classroom/Storeroom Exit Device Trim (formerly Yale) is a high-intent, heavy-duty architectural solution designed for maximum security and operational flexibility. As a Grade 1 certified escutcheon trim, it is engineered for high-traffic institutional environments such as schools, hospitals, and government buildings. This versatile trim features a dual-function design that allows for very easy field conversion between Classroom (ANSI 08) and Storeroom (ANSI 09) functions, adapting seamlessly to your facility's evolving security protocols.
Crafted with a solid forged/cast escutcheon and a free-wheeling lever mechanism, the 626F is built to withstand physical attacks and heavy-handed use. The beveled sides of the escutcheon plate improve resistance against prying, while the through-bolt mounting ensures a high-strength, "sandwich-style" attachment to the exit device.
Elite Security & ADA Compliant Design
- Dual-Function Versatility: Effortlessly change from Classroom (key locks/unlocks lever) to Storeroom (key retracts latch, lever is always rigid) in the field.
- Vandal-Resistant Free-Wheeling Trim: The lever rotates freely when locked, preventing internal components from breaking under excessive force or vandalism.
- Industrial Grade 1 Strength: Certified to ANSI/BHMA A156.3 standards, ensuring reliable performance across millions of cycles in the most demanding settings.
- Pacific Beach (PB) Lever Style: Features a modern, ergonomic square-profile design that is fully ADA Compliant and meets the A117.1 Accessibility Code.
- Heavy-Duty Through-Bolting: Trim bolts directly through the door to the exit device, providing superior structural integrity and preventing the hardware from sagging.
- Premium Stock Finishes: Available in US32D (630) Satin Stainless Steel and Black Suede Powder (BSP) for immediate utility.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | PB 626F |
| Function | Classroom (08) / Storeroom (09) Field Selectable |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Finish | 630 - Satin Stainless Steel / BSP - Black Suede |
| Lever Style | PB (Pacific Beach) |
| Cylinder Type | Less Rim Cylinder (Required for operation) |
| Dimensions | 3" x 10-1/4" x 13/16" (76mm x 260mm x 19mm) |
| Door Thickness | 1-3/4" (44mm) Standard |
| Handing | Field Reversible (Furnished RHR) |
| Warranty | 10-Year Limited Warranty |
Compatibility & Cylinder Options
The Accentra PB 626F is specifically engineered for perfect synergy with Accentra (Yale) 7000, 6000, and 2100 Series Rim Exit Devices. Because this trim is furnished Less Rim Cylinder, you must select a compatible cylinder to complete the installation.
To maintain your facility's master key system, you can choose from several high-quality options:
- Standard Keyways: The Accentra 1109 Rim Cylinder (Para) or the budget-friendly Ilco 7075 (Schlage C).
- Interchangeable Core (IC) Options: For rapid re-keying, use the Accentra 1212 LFIC Housing or the PDQ I5308 SFIC Housing.
- High-Security Options: Sargent 34 Rim Cylinders are also compatible for integrated security platforms.
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - 7000 Series, Accentra - 6000 Series, Accentra - 2100 Series |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Exit Device Trim Function | Classroom, Storeroom |
| Trim Design | PB - Pacific Beach |
