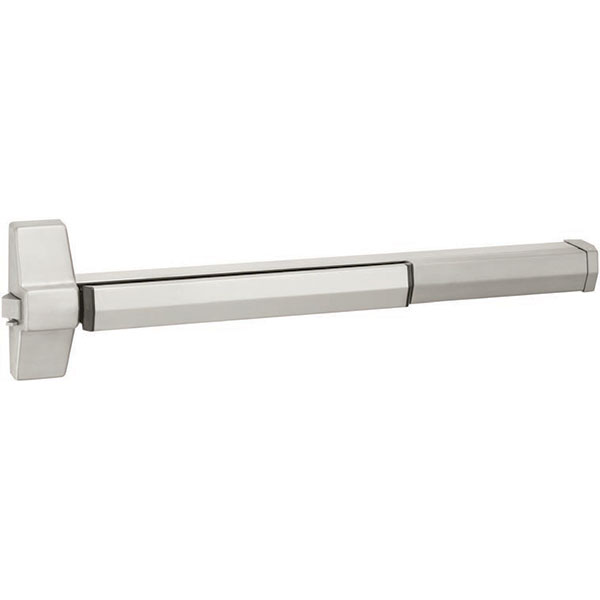

Accentra 7100F Grade 1 Fire-Rated Rim Exit Device | 36" Door | US32D Stainless Steel
The Accentra 7100F Fire-Rated Rim Exit Device (formerly Yale) is a high-intent, industrial-grade life safety solution engineered for the most demanding commercial environments. This ANSI/BHMA Grade 1 certified panic bar is specifically designed for 36" wide fire-labeled doors, providing a 3-hour fire rating on single doors or pairs of doors when used with a fire-rated mullion. Finished in a premium US32D (630) Satin Stainless Steel, this device offers elite corrosion resistance and a modern aesthetic suitable for high-end institutional facilities.
Built for longevity in high-use areas such as schools, hospitals, and government buildings, the 7100F Series features a 3/4" throw deadlocking stainless steel pullman latchbolt. This heavy-duty latching mechanism ensures a positive, secure connection with the strike, protecting the opening against forced entry while guaranteeing immediate, effortless egress during an emergency.
Elite Fire Safety & Structural Security
- 3-Hour Fire Rated Performance: UL/cUL Listed for fire exit hardware (GXHX) on 4' x 8' single doors and 8' x 8' pairs, ensuring maximum protection for life safety.
- Grade 1 Heavy-Duty Durability: Rigorously tested to meet ANSI/BHMA A156.3 Type 1 standards, guaranteeing millions of cycles of reliable operation in high-frequency corridors.
- Architectural Stainless Steel Finish (US32D): The satin stainless steel construction provides a sleek, professional look while offering the highest level of resistance to scratches, wear, and environmental corrosion.
- Deadlocking Pullman Latchbolt: The 3/4" stainless steel latchbolt features an integrated deadlocking mechanism that prevents "shimming" and unauthorized manipulation.
- Code-Compliant Operation: In strict accordance with fire-life safety codes, this fire-labeled device is non-dogging, ensuring the door is always latched to contain fire and smoke.
- Corrosion-Resistant Internals: All ferrous internal components are electroplated to provide a sturdy construction that stands up to humid or harsh environments.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 7100F (Exit Only) |
| Device Type | Fire-Rated Rim Exit Device |
| Fire Rating | UL 10C / 3-Hour Listed |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Finish | US32D / 630 (Satin Stainless Steel) |
| Door Width Compatibility | 36" (Fits 30" - 36" Wide Doors) |
| Minimum Stile Width | 4-1/2" (114mm) |
| Latchbolt | 3/4" (19mm) Deadlocking Stainless Steel Pullman-Type |
| Fasteners | Thru Bolts (Sleeve Nuts) Shipped Standard |
| Warranty | 5-Year Limited Warranty |
Professional Installation & Accessory Compatibility
The Accentra 7100F is designed for a permanent, high-strength mount. To ensure compliance with fire-rated door standards and to maintain structural integrity under heavy use, this device is supplied standard with thru bolts for a secure "sandwich-style" attachment. While this model is an "Exit Only" configuration, it is fully compatible with a wide range of Accentra Exit Device Trim, including the 620F Series Escutcheon and 540F Series Rose Trim, for applications requiring exterior keyed access.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - 7000 Series |
| Exit Device Type | Rim Exit Device |
| Door Opening Width | 36 Inches |
| Exit Device Fire Rating | Fire Rated Door |
