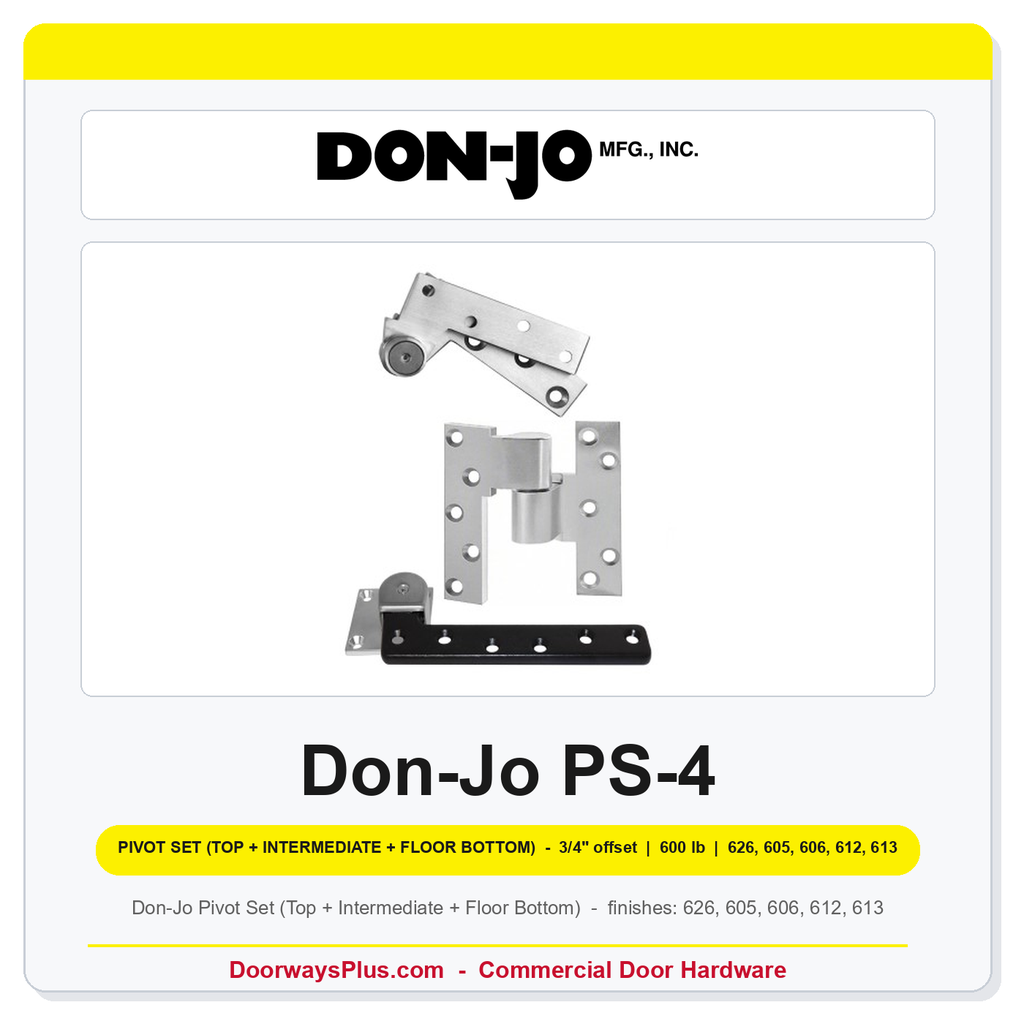

Don-Jo PS-4 Pivot Set | Top + Intermediate + Floor Bottom | 3/4" Offset | 600 lb | 626 Satin Chrome / 605 Bright Brass / 606 Satin Brass / 612 Satin Bronze / 613 Oil-Rubbed Bronze

The Don-Jo PS-4 is a full pivot set comprising a top pivot, intermediate pivot, and floor bottom pivot engineered for heavy commercial and institutional door applications requiring a 3/4 inch offset and a rated 600 lb load capacity. Constructed from non-ferrous material, the PS-4 resists corrosion and meets the durability demands of high-traffic entryways. This set is handed — specify LHR (left-hand reverse) or RHR (right-hand reverse) at time of order. Available in five finish options: 626 satin chrome (US26D), 605 bright brass (US3), 606 satin brass (US4), 612 satin bronze (US10), and 613 oil-rubbed bronze (US10B) — making it straightforward to coordinate with existing door hardware on any commercial project.

3/4 Inch Offset Pivot Configuration

The PS-4 delivers a precise 3/4 inch pivot offset essential for proper door swing clearance and frame alignment in commercial pivot door installations.

• Correct offset geometry: The 3/4" offset positions the pivot point to allow the door panel to clear the frame consistently, a critical requirement for heavy-duty commercial pivot door hardware specifications.
• Full set included: Ordering a single SKU provides the top pivot, intermediate pivot, and floor bottom pivot needed to complete a standard single-door pivot set installation without sourcing components separately.

600 lb Load Capacity for Heavy Commercial Doors

The PS-4 pivot set carries a rated 600 lb load capacity, making it suitable for oversize or heavy solid-core doors found in commercial, institutional, and high-traffic applications.

• Heavy-duty rated: A 600 lb pivot set load rating accommodates solid-core wood, hollow metal, and other substantial door assemblies commonly specified in commercial new construction and retrofit projects.
• Intermediate pivot placement: For doors between 60 and 90 inches tall, one intermediate pivot is standard; each additional 30 inches of door height warrants an additional intermediate pivot to distribute load properly across the pivot door system.

Non-Ferrous Construction and Multi-Finish Availability

The PS-4 is manufactured from non-ferrous material for corrosion resistance, and is offered in five architectural finishes to satisfy a wide range of commercial project specifications.

• Non-ferrous material: Resists oxidation and galvanic corrosion, supporting long service life in commercial pivot hardware applications exposed to humidity or frequent cleaning.
• Finish selection: Choose from 626 satin chrome, 605 bright brass, 606 satin brass, 612 satin bronze, or 613 oil-rubbed bronze to match door hardware finish schedules on commercial and institutional projects.

Technical Details

To order, select your required finish and specify door handing (LHR or RHR) at checkout. As a non-stock item, the Don-Jo PS-4 ships direct from the manufacturer with an estimated lead time of 3–10 business days.
