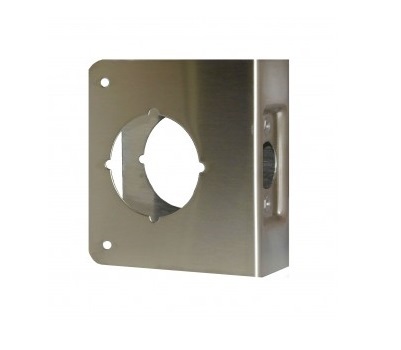

Don-Jo 61-CW Stainless Steel Wrap-Around Plate | Compact 1-3/4" Door Reinforcer

The Don-Jo 61-CW Stainless Steel Wrap-Around Plate is an industrial-strength security solution designed for targeted reinforcement of standard commercial and residential entryways. Measuring a compact 4" wide x 4-1/2" high, this door reinforcer is specifically engineered for 1-3/4" thick doors. It is the premier solution for door surface repair when the area immediately surrounding the lock has become weakened, splintered, or weathered, providing a clean and professional way to restore the structural integrity of your door.

Precision-manufactured with a 2-1/8" hole prep, the 61-CW is optimized for hardware with a 2-3/8" backset. By wrapping around the door edge and "sandwiching" both faces in heavy-gauge steel, it serves as a critical solution for commercial door security, preventing the door from splitting during a forced entry attempt or under the daily stress of high-frequency use.

Key Features & Performance

• 1-3/4" Commercial Fit: Precision-fit for the standard thickness of commercial hollow metal and solid-core wood doors, ensuring a snug, flush-mount installation.

• Concentrated Reinforcement: The 4" x 4-1/2" profile provides maximum strength at the lock's mounting point without the bulk of a full-length plate, making it an efficient solution for door edge reinforcement.
• Standard 2-3/8" Backset: Features a factory-punched 2-1/8" bore positioned exactly 2-3/8" from the door edge, ensuring a "drop-in" installation for the most common lockset configurations.

• Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, offering industrial-grade corrosion resistance and a modern, brushed finish that coordinates with architectural hardware.
• Professional Restoration: Functions as a durable remodeling scar plate, hiding finish wear, small cracks, and imperfections around the lock prep for a polished, factory-clean appearance.

Technical Details & Specifications

• Brand: Don-Jo
• Model Number: 61-CW
• Overall Size: 4" Width x 4-1/2" Height

• Door Thickness: 1-3/4"
• Backset: 2-3/8"
• Hole Prep: 2-1/8" Standard Cylindrical

• Material: Heavy-Duty Stainless Steel
• Finish: US32D/630 (Satin Stainless Steel)
• Installation: Includes all necessary mounting fasteners. For maximum stability in high-traffic areas, the lockset's own mounting screws or thru bolts secure the assembly firmly to the door leaf.


Why Choose the Don-Jo 61-CW?

The Don-Jo 61-CW is the industry-standard "problem solver" for facility managers and locksmiths. When a door's core is compromised near the latch, this stainless steel wrap plate provides a permanent steel barrier that significantly increases the strength of the lock area. It is a cost-effective and reliable solution for door restoration, delivering the industrial-strength security and aesthetic appeal required to extend the life of your door and hardware.

​
