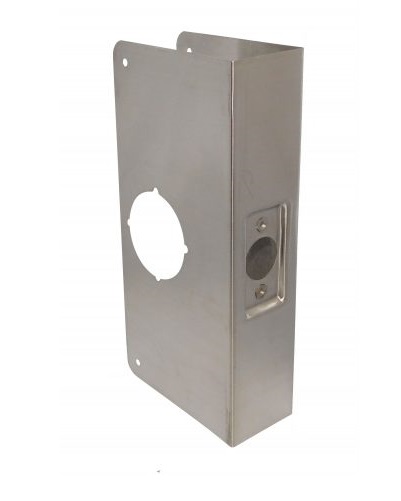

Don-Jo 214-CW Stainless Steel Wrap-Around Plate | 2-1/4" Extra-Thick Door Reinforcer

The Don-Jo 214-CW Stainless Steel Wrap-Around Plate is a high-security architectural solution precision-engineered for non-standard 2-1/4" thick doors. Measuring 4-1/4" wide x 9" high, this heavy-duty door wrap-around plate provides a 360-degree steel "sandwich" around the lock area, offering maximum structural integrity where standard hardware fails to fit. It serves as the definitive solution for door surface repair on oversized commercial doors, effectively concealing "ghosting," splintering, or abandoned mounting holes from previous hardware transitions.

Precision-manufactured with a 2-1/8" hole prep and a 2-3/4" backset, the 214-CW is the ideal choice for reinforcing cylindrical locksets on thick-profile entryways. By reinforcing the most vulnerable point of the door leaf, it serves as a critical solution for commercial door security, preventing the door from splitting during a forced entry attempt or under the daily stress of high-frequency use.

Key Features & Performance

• Specialized 2-1/4" Fit: Custom-contoured for the thicker profile of oversized commercial wood or hollow metal doors, ensuring a flush and secure installation.
• Standard 2-3/4" Backset: Features a factory-punched 2-1/8" bore positioned exactly 2-3/4" from the door edge, making it a "drop-in" upgrade for Grade 1 and Grade 2 commercial lever sets.
• 9-Inch Protective Coverage: The extended height acts as a professional remodeling scar plate, hiding unsightly mounting marks and finish wear for a clean, factory-finished appearance.
• Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, providing industrial-grade corrosion resistance and a modern, brushed aesthetic that coordinates with architectural hardware.

• Structural Reinforcement: Strengthens the door leaf to prevent hardware from loosening over time and provides a permanent solution for door edge reinforcement.


Technical Details & Specifications

• Brand: Don-Jo
• Model Number: 214-CW
• Overall Size: 4-1/4" Width x 9" Height

• Door Thickness: 2-1/4"
• Backset: 2-3/4"
• Hole Prep: 2-1/8" Standard Cylindrical

• Material: Heavy-Gauge Stainless Steel
• Finish: US32D/630 (Satin Stainless Steel)
• Installation: Includes all necessary mounting fasteners. For high-security applications, the lockset's own thru bolts or mounting screws pass through the plate to create a rigid, tamper-resistant bond to the door.


Why Choose the Don-Jo 214-CW?

The Don-Jo 214-CW is the industry-standard "problem solver" for unique door thicknesses. Finding high-quality reinforcement for 2-1/4" doors is a challenge; this stainless steel wrap plate restores the opening to better-than-factory strength, avoiding the exorbitant cost of full door replacement. It is a permanent and aesthetically pleasing solution for door restoration, delivering the industrial-strength security required for industrial plants, high-security facilities, and custom commercial architecture.

​
