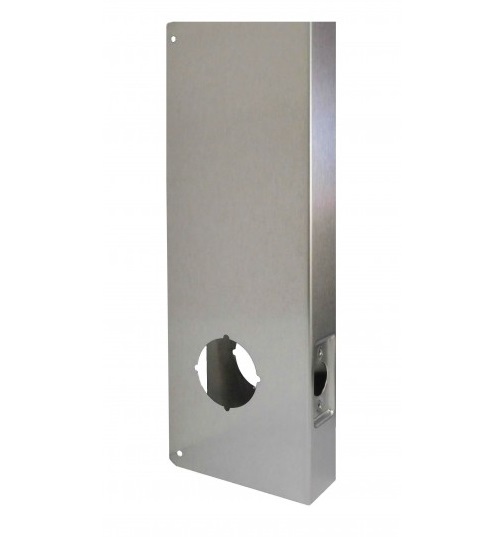

Don-Jo 14-CW Stainless Steel Wrap-Around Plate | 5" x 14" Keyless Conversion Plate
The Don-Jo 14-CW Stainless Steel Wrap-Around Plate is the ultimate architectural solution for modernizing door hardware and repairing compromised entryways. Measuring an expansive 5" x 14", this heavy-duty door reinforcer is specifically designed to facilitate a clean cylindrical lock conversion from oversized electronic or mechanical push-button locks. If you are removing a Simplex 1000 or an Alarm Lock Trilogy (DL2500, DL2700, T2, or T3000 series), this plate is the professional choice to conceal the large footprint and multiple mounting holes left behind.
Constructed for 1-3/4" thick doors, the 14-CW features a precision-punched 2-1/8" hole prep at a 2-3/4" backset. It acts as a massive remodeling scar plate, providing 360-degree structural integrity while restoring the door's surface to a factory-finished appearance.
Key Features & Performance
- Specialized Keyless Conversion: Engineered to transition from Simplex 1000 or Alarm Lock DL/T2/T3 series hardware to a standard cylindrical lever set without the need for door replacement.
- Massive 14-Inch Coverage: The oversized 5" x 14" profile effectively hides all "ghosting," finish discoloration, and abandoned thru-bolt holes from legacy electronic locks.
- Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, offering industrial-grade durability and superior corrosion resistance to match standard commercial trim.
- Structural Reinforcement: Envelopes the door edge and faces to provide a rigid steel barrier, serving as a high-impact solution for commercial door security and forced entry prevention.
- Universal 2-3/4" Backset: Pre-prepped for standard commercial hardware, ensuring your new lockset aligns perfectly with existing frame strikes.
Technical Details & Specifications
- Brand: Don-Jo
- Model Number: 14-CW
- Overall Size: 5" Width x 14" Height
- Door Thickness: 1-3/4"
- Backset: 2-3/4"
- Hole Prep: 2-1/8" (Cylindrical)
- Material: Stainless Steel
- Finish: US32D/630 (Satin Stainless Steel)
- Installation: Includes specialized fasteners. For maximum stability and anti-pry protection, the plate is designed to be clamped to the door using the lockset’s own thru bolts or mounting posts.
Why Choose the Don-Jo 14-CW?
The Don-Jo 14-CW is a critical "problem solver" for facility managers and locksmiths. Transitioning away from large-format keyless locks often leaves a door looking "Swiss cheese" with various holes and scars; this stainless steel wrap plate provides a clean slate and a reinforced foundation. It is a cost-effective, permanent solution for door restoration that upgrades both the security and the aesthetic of your facility. By choosing the 14-CW, you ensure your new hardware is mounted on an industrial-strength surface that will last for years.
| Brand | Don-Jo |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Door Thickness | 1-3/4" Dr Thickness |
| Backset | 2-3/4" Backset |
| Series | DormaKaba - L1000 Series, DormaKaba - 1000 Series |
| Height | 14 Inch |
| Lock Type | Kaba L1000/1000 Series, Cylindrical Lock |
