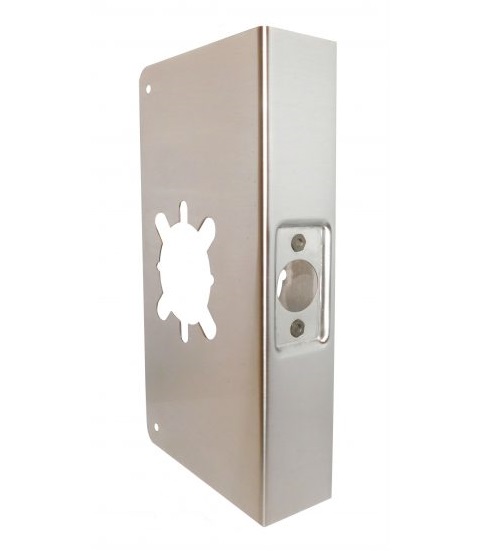

Don-Jo 12-2-CW Stainless Steel Wrap-Around Plate | 12" Heavy-Duty Beveled Door Reinforcer

The Don-Jo 12-2-CW Stainless Steel Wrap-Around Plate is a premier architectural security solution designed for maximum door reinforcement and surface restoration. Measuring a substantial 12 inches in height, this heavy-duty door wrap provides comprehensive 360-degree protection, effectively "sandwiching" the door to prevent prying, splitting, and forced entry. It is the ultimate solution for door surface repair, allowing facility managers to conceal extensive "ghosting," splintering, or abandoned holes while creating a structurally superior foundation for new hardware.

This specific wrap-around plate is engineered for 1-3/4" thick beveled edge doors and features a 2-1/8" hole prep set at a 2-3/4" backset. Unlike standard plates, the 12-2-CW includes precision-drilled holes to accommodate thru bolts and mounting posts found on modern commercial lever locks, ensuring a perfectly aligned and stable installation.

Key Features & Performance

• Cylindrical Lever Optimized: Pre-drilled with a 2-1/8" bore and thru bolt holes, specifically designed for commercial lever sets that require mounting posts for anti-rotation and stability.

• Beveled Edge Compatibility: Custom-contoured for beveled edge doors, ensuring a flush, professional fit that doesn't interfere with the door's swing or latching mechanism.
• Extended 12-Inch Coverage: The oversized 4-3/4" x 12" profile acts as a massive remodeling scar plate, hiding years of hardware transitions and structural damage far beyond the lock rose.
• Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, providing industrial-grade corrosion resistance and a sleek finish that matches high-end commercial trim.
• Industrial-Strength Security: A critical solution for commercial door security in schools, hospitals, and government buildings where protecting the lock area from physical attack is a priority.

Technical Details & Specifications

• Brand: Don-Jo
• Model Number: 12-2-CW
• Overall Size: 4-3/4" Width x 12" Height
• Door Thickness: 1-3/4" (Designed for Beveled Edges)

• Backset: 2-3/4"
• Hole Prep: 2-1/8" with thru bolt / mounting post holes.

• Material: Stainless Steel
• Finish: US32D/630 (Satin Stainless Steel)
• Installation: Includes specialized fasteners to secure the plate to the door faces and edge.

Why Choose the Don-Jo 12-2-CW?

The Don-Jo 12-2-CW is the professional's choice for restoring compromised openings. When a door is damaged due to a break-in or repeated hardware failure, this stainless steel wrap plate bridges the weakened areas with rigid steel, restoring the door's integrity to better-than-factory standards. It is an essential commercial hardware restoration tool that ensures your new lever lock functions with the precision and security required for high-traffic environments. By choosing the 12-2-CW, you are investing in a permanent, architectural-grade solution for door edge reinforcement.

​
