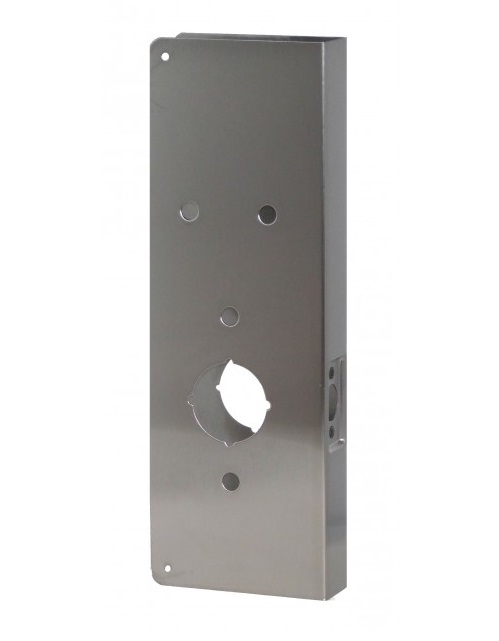

Don-Jo E2000-CW Stainless Steel Wrap-Around Plate | Kaba E-Plex 2000 Series Reinforcer
The Don-Jo E2000-CW Stainless Steel Wrap-Around Plate is a high-security, architectural-grade solution specifically engineered for the Kaba E-Plex 2000 Series Electronic Locksets. Measuring a substantial 5" x 15", this heavy-duty door wrap-around plate provides an industrial-strength foundation for electronic access control hardware. It serves as the premier solution for door surface repair, allowing facility managers to conceal extensive "ghosting," abandoned mounting holes, or splintered wood/metal while upgrading to a modern keyless system.
Precision-manufactured for 1-3/4" thick doors, the E2000-CW features factory-punched mounting locations that align perfectly with the E-Plex 2000 series footprint. With a 2-3/4" backset prep, this plate ensures your electronic lock is encased in a rigid, stainless steel "sandwich" that prevents door splitting and protects against forced entry.
Key Features & Performance
- Kaba E-Plex Optimized: Custom-prepped to match the unique mounting points of Kaba E-Plex 2000 Series electronic locks, ensuring a seamless, high-stability installation without field modifications.
- Extended 15-Inch Coverage: The oversized profile acts as a massive remodeling scar plate, hiding years of hardware transitions and structural scars far above and below the lock chassis.
- 360-Degree Reinforcement: Envelopes the door edge and both faces to provide a high-impact solution for commercial door security and anti-pry protection.
- Premium 630 Stainless Steel: Manufactured from US32D / 630 Satin Stainless Steel, offering industrial-grade corrosion resistance and a professional finish that matches modern architectural hardware.
- Electronic Lock Support: Specifically designed to accommodate the thru-door requirements of electronic trim, providing a rigid surface that prevents the lock from shifting or loosening over time.
Technical Details & Specifications
- Brand: Don-Jo
- Model Number: E2000-CW
- Overall Size: 5" Width x 15" Height
- Door Thickness: 1-3/4"
- Backset: 2-3/4"
- Compatibility: Kaba E-Plex 2000 Series
- Material: Stainless Steel
- Finish: US32D/630 (Satin Stainless Steel)
- Installation: Includes all necessary mounting fasteners. The lockset’s own thru bolts pass through the plate to create a permanent, tamper-resistant bond to the door.
Why Choose the Don-Jo E2000-CW?
The Don-Jo E2000-CW is a critical "problem-solver" for locksmiths and facility managers upgrading to electronic access control. When transitioning from older mechanical locks to an electronic platform, the door often requires significant surface restoration; this stainless steel wrap plate provides a clean slate and superior reinforcement. It is a cost-effective and permanent solution for door restoration, delivering the industrial-strength security and polished appearance required for high-traffic commercial environments.
| Brand | Don-Jo |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Door Thickness | 1-3/4" Dr Thickness |
| Backset | 2-3/4" Backset |
| Series | DormaKaba - E2000 Series |
| Height | 15 Inch |
| Lock Type | Kaba E2000 Series, Cylindrical Lock |
