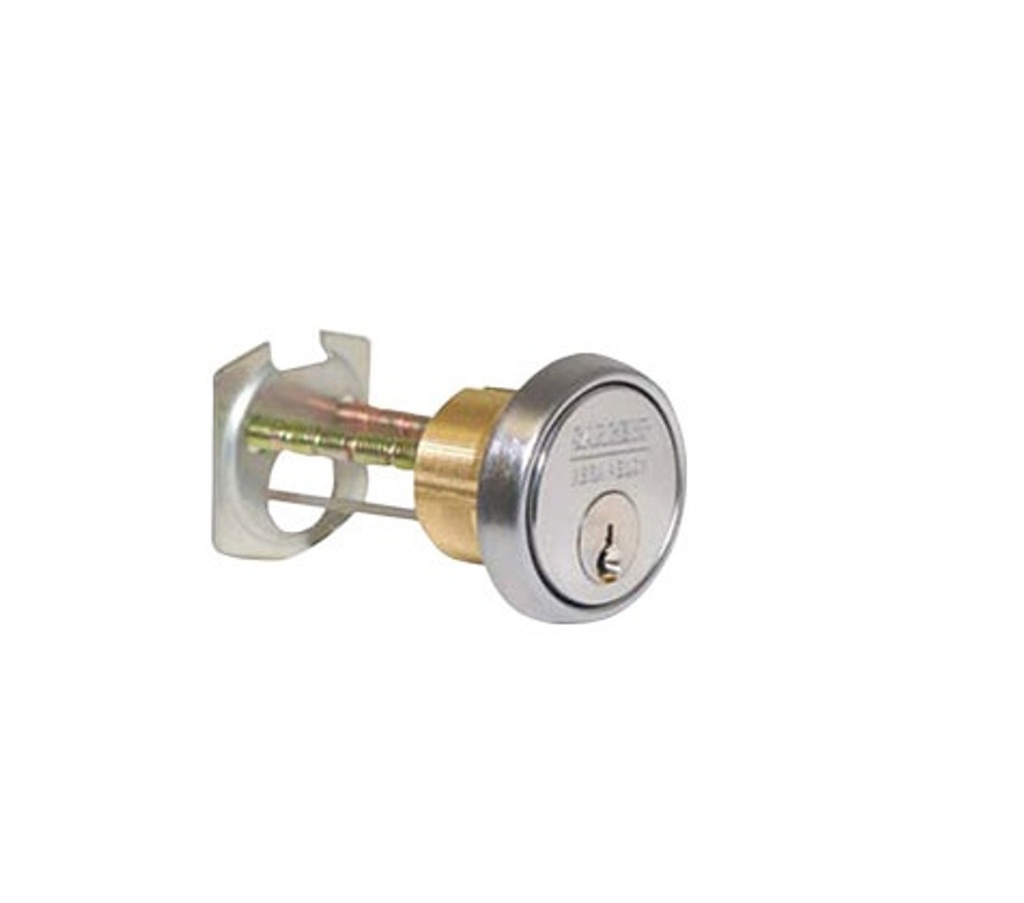

Sargent SC 34 Rim Cylinder with Schlage C Keyway | Solid Brass Architectural Cylinder
The Sargent 34 Rim Cylinder is a precision-engineered, high-security locking component designed specifically for seamless integration with Sargent exit devices and panic hardware. Machined from solid brass bar stock, this cylinder provides exceptional durability and smooth mechanical operation, making it a staple for high-traffic commercial, institutional, and industrial facilities.
This model is engineered with a 27/32" screw pattern, allowing it to be securely bolted thru Sargent exit devices for maximum stability and resistance to physical attack. Each unit comes furnished with essential mounting hardware, including a No. 97 (1/4") Trim Ring, a rosette with a compression ring, and break-off screws for a custom fit across various door thicknesses.
Professional Grade Security & Reliability
- Solid Brass Construction: Unlike zinc or plated alternatives, the solid brass body and plug offer superior corrosion resistance and longevity.
- Thru-Bolt Security: The specific 27/32" mounting pattern ensures a rigid connection to the exit device, preventing cylinder rotation or pull-out.
- Standard Trim Package: Includes the No. 97 Rosette and compression ring to provide a clean, finished architectural look while protecting the cylinder face.
- Precision Tailpiece: Features a horizontal tailpiece specifically designed for the timing requirements of rim-mounted panic hardware.
- Versatile Keying: Available in a wide array of Sargent keyways. Note that SC34 x C KWY cylinders are provided 0-bitted, allowing for easy field-keying to your existing master key system.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Part Number | 34 (Rim Cylinder) |
Old Part Number | 13-3624 |
| Material | Solid Brass Bar Stock |
| Mounting Pattern | 27/32" (For Thru-Bolting) |
| Tailpiece Type | Horizontal |
| Trim Included | No. 97 (1/4") Trim Ring & Rosette |
| Fasteners | Break-off Screws & Back Plate included |
| Certification | Meets ANSI/BHMA A156.5 Grade 1 |
Installation & Compatibility Options
The Sargent 34 Rim Cylinder is the industry standard for pairing with Sargent 80 Series and 90 Series exit devices. The inclusion of the 1/4" trim ring ensures the cylinder sits flush against the door face, providing a professional aesthetic in all standard architectural finishes.
Whether you are performing a new installation or a facility-wide retrofit, the Sargent 34 offers the reliability required for life-safety applications. At DoorwaysPlus.com, we provide these cylinders in multiple finishes to match your existing hardware, including Satin Chrome (626) and Bright Brass (605).
| General - US Finishes | US26D - Satin Chrome |
| Brand | Sargent |
| Cylinder Type | Rim Cylinder, Conventional |
| Key Length | 5 Pin, 6 Pin |
