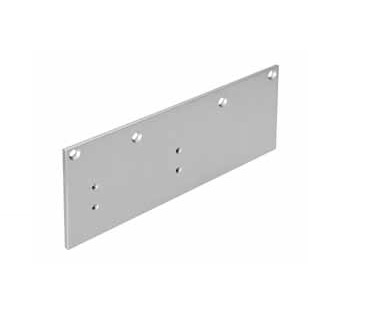

Corbin Russwin 597F58 Drop Plate - For DC3000 & DC6000 Series
The Corbin Russwin 597F58 is a genuine OEM Drop Plate designed to provide flexible mounting solutions for the DC3000 and DC6000 Series door closers. This precision-engineered steel plate is the industry-standard fix for installations where the door’s top rail is too narrow to accommodate the closer’s standard footprint. By lowering the mounting position, the 597F58 ensures a secure, Grade 1 installation without compromising the closer’s hydraulic performance or UL fire-rating.
Institutional Grade Features
- Narrow Rail Solution: Engineered for doors with a minimum top rail of 2-5/8" (67mm), allowing for a professional parallel arm installation where standard mounting would be impossible.
- Low Ceiling Compatibility: Ideal for jamb-mounted applications where low ceiling clearance or overhead obstructions prevent the use of standard mounting brackets.
- Hardware Integration: Specifically designed to provide the necessary vertical clearance for overhead door holders, surface-mounted door stops, or thick frame gasketing/weatherstripping.
- Heavy-Duty Construction: Manufactured from high-strength steel to support the torque and weight of Corbin Russwin’s most powerful closers in high-traffic environments.
- Versatile Series Support: Specifically intended for use with the following models:
- DC3000 Series: DC3210
- DC6000 Series: DC6210, DC6410, DC6240, and DC6440
Technical Specifications
- Manufacturer: Corbin Russwin (ASSA ABLOY)
- Model Number: 597F58
- Minimum Top Rail Requirement: 2-5/8" (67mm)
- Mounting Type: Parallel Arm / Top Jamb (Low Clearance)
- Compatible Closers: DC3000 & DC6000 Series
| General - US Finishes | 689 - Spray Alumimun or 690 - Spray Dark Bronze or 691 - Light Bronze or 696 - Spray Gold |
| Brand | Corbin Russwin |
| Series | Corbin-Russwin - DC3000 Series, Corbin-Russwin - DC6000 Series |
| Closer Part Type | Brackets & Feet |
Corbin Russwin DC3000 Catalog.pdf
Download
Corbin Russwin DC3000 Series DC3210 Surface Door Closers Parallel Arm Mounting 597F58 Plate Template.pdf
Download
Corbin Russwin DC3000 Series DC3210 Surface Door Closers with A4 & A5 Heavy Duty Backstop Non-Hold & Hold Open Arms Parallel Arm Mounting 597F58 Plate Template.pdf
Download
Corbin Russwin DC6000 Catalog.pdf
Download
Corbin Russwin DC6000 Series DC6210, DC6410 Surface Door Closer with A2, A4, A5 Arms Heavy Duty Parallel Arm Mounting 597F58 Plate Template.pdf
Download
Corbin Russwin DC6000 Series DC6210, DC6410 Surface Door Closer with or without A1 Arm Parallel Arm Mounting 597F58 Plate Template.pdf
Download
