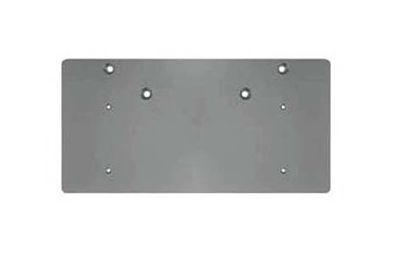

Sargent 351-D Drop Plate — Parallel Arm Mounting Solution for Narrow Top Rails

The Sargent 351-D Drop Plate is a specialty mounting bracket engineered to enable parallel arm closer installations on doors with narrow top rails. Where standard surface-mount geometry cannot accommodate a full parallel arm setup, the 351-D provides the additional drop clearance required to position the closer body correctly — making it an essential part for retrofit projects, renovation work, and new construction wherever top rail depth is a limiting factor.

This plate is finished in EN (Aluminum Powder Coat), corresponding to ANSI/BHMA finish 689, making it an ideal match for Sargent 351 Series closers specified in aluminum finish — one of the most common closer finishes on commercial aluminum-framed doors and hollow metal doors in institutional and commercial environments.

Key Benefits

• Enables parallel arm mounting on narrow top rails — requires a minimum 3 inches (76 mm) of top rail depth, making it usable in a wide range of commercial door frame conditions
• Non-handed — works on left-hand and right-hand doors without modification, simplifying ordering and reducing jobsite errors
• Finish-matched to 351 Series closers in EN/689 Aluminum Powder Coat — provides a clean, consistent appearance on aluminum-finish hardware assemblies
• Designed specifically for the Sargent 351 Powerglide Series — engineered compatibility means no guesswork on fitment
• Supports retrofit and replacement applications — ideal when existing hardware must be updated without major structural changes to the door or frame

Typical Applications

• Commercial hollow metal doors with shallow top rails requiring parallel arm closer installation
• Retrofit closer upgrades where door rail depth does not accommodate standard mounting plates
• Institutional facilities (schools, healthcare, government buildings) specifying Sargent 351 Series closers in aluminum finish
• New construction projects where the architect or hardware consultant has specified parallel arm mounting to keep the closer on the push (non-public) side of the door

About Parallel Arm Mounting

In a parallel arm configuration, the closer body mounts on the push side of the door and the arm runs parallel to the door face when closed. This keeps the closer out of the primary traffic path and protects it from impact and vandalism — a preferred mounting style in high-traffic commercial and institutional settings. The 351-D Drop Plate makes this configuration possible when the door's top rail is too narrow for a standard parallel arm bracket footprint.

Technical Details

The Sargent 351-D Drop Bracket in EN Finish is a high-performance commercial door closer accessory designed specifically for parallel arm (push-side) installations. This mounting plate is the industry-standard mechanical solution for doors with narrow top rails, providing a secure and stable foundation for the Sargent 351 Series Powerglide® Door Closer. When a door's architectural design features a top rail under 5-3/4", a standard closer mounting is impossible; the 351-D bridges this gap, permitting a robust installation on rails as narrow as 3" (76 mm).

Finished in a durable EN Sprayed Aluminum, this bracket offers a clean, professional aesthetic that blends seamlessly with the door closer and aluminum storefront frames. As a vital facility maintenance solution, the 351-D ensures that the closer body is properly supported, preventing the hardware from loosening or stripping out of the door under high-frequency use. Its non-handed design provides maximum field versatility, allowing it to be used on both left-hand and right-hand doors in schools, healthcare facilities, and high-traffic office buildings.

Structural Utility & ANSI Performance Summary

The 351-D Drop Bracket is more than a spacer; it is a structural component that preserves the mechanical integrity and safety certifications of the entrance:

• Top Rail Adaptability: Solves the primary challenge of mounting heavy-duty closers on narrow-stile glass doors or thin-railed metal doors.
• Force Distribution: By using a wider footprint and dedicated fastening points, the plate serves as a stabilization solution, distributing the torque of the parallel arm to prevent door warping or fastener failure.
• Overhead Hardware Compatibility: While the standard requirement is 3", the 351-D is engineered to work in conjunction with auxiliary overhead stops and holders, though rail requirements may vary based on the specific holder used.
• ANSI/BHMA Grade 1 Standards: When used with the Sargent 351 Series, this plate supports the closer’s ANSI/BHMA A156.4 Grade 1 certification, ensuring the door remains compliant with Life Safety Codes and ADA accessibility requirements for millions of cycles.

Technical Specifications

Engineered Solutions for Storefront Security

The Sargent 351-D EN addresses the specific technical hurdles faced by glaziers and facility managers:

• Storefront Retrofit Solution: Aluminum storefront doors are notoriously difficult to fit with heavy-duty closers due to their slim profiles. The 351-D is the primary architectural solution that enables a professional, code-compliant parallel arm installation on these common commercial doors.
• Vandal-Resistant Security: Parallel arm mounting places the closer on the interior (push) side of the door. The 351-D ensures this security solution is achievable even on narrow rails, keeping the closer protected from exterior tampering or weather.
• Hardware Lifecycle Extension: A closer mounted on an unstable rail will eventually leak or fail due to internal stress. This bracket provides a reliability solution by ensuring the closer body remains perfectly level and rigid during operation.
• Aesthetic Consistency: The powder coat finish is factory-matched to the closer cover, providing a seamless design solution that maintains the visual integrity of high-end commercial interiors.
• Simplified Compliance: Ensuring a closer is mounted to factory specifications is a code-compliance solution. This bracket guarantees the mounting geometry is correct, helping the opening pass Fire Marshal and ADA inspections.
