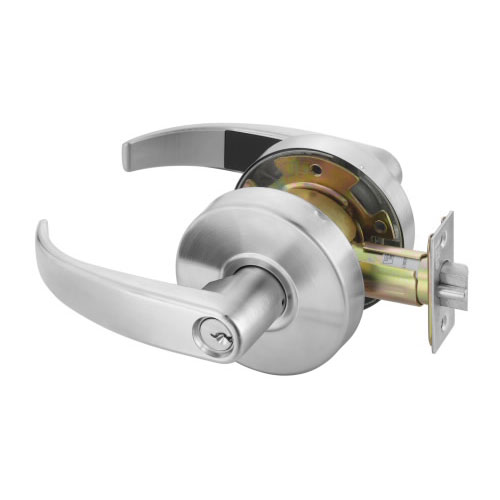

Accentra PB 4608LN Grade 2 Classroom Function Cylindrical Lock
Function Information:
- For classroom or utility room doors.
- Deadlocking latchbolt.
- Either lever operates latchbolt (except when outside lever is locked by key).
- Inside lever always active.
- Key releases outside lever.
- ANSI F84
The Accentra PB 4608LN Classroom Lockset (formerly Yale) is a high-intent commercial security solution specifically engineered for schools, universities, and public buildings. As part of the Series 4000 Grade 2 Standard Duty lineup, this cylindrical lockset provides the essential "Classroom Function," which ensures that the exterior lever's locked or unlocked status is controlled exclusively by an authorized key holder.
Featuring the ergonomic and classic PB (Pacific Beach) lever style, this hardware offers a comfortable grip while maintaining the industrial strength required for high-traffic environments. The Accentra 4608LN is designed to prioritize student and occupant safety, maintaining a constant path for emergency egress while preventing unauthorized individuals from locking the door from the inside.
Essential Safety & Security Features
- Classroom Security (ANSI F84): The outside lever is locked or unlocked only by key. This prevents occupants from accidentally or intentionally locking the door from within the room.
- Life Safety Compliance: The inside lever is always active, ensuring that everyone can exit the room immediately at all times, regardless of the locked status of the exterior.
- Deadlocking Latchbolt: Equipped with a 1/2" throw deadlocking latchbolt that provides high-level resistance against "shimming" or forced entry attempts.
- Grade 2 Certified: Certified ANSI/BHMA A156.2, Series 4000, Grade 2 for reliable, long-term performance in medium-traffic commercial settings.
- Code-Approved Protection: UL-cUL listed for fire doors up to 3 hours and fully compliant with ADA A117.1 Accessibility Codes.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | PB 4608LN |
| Function | Classroom (ANSI F84) |

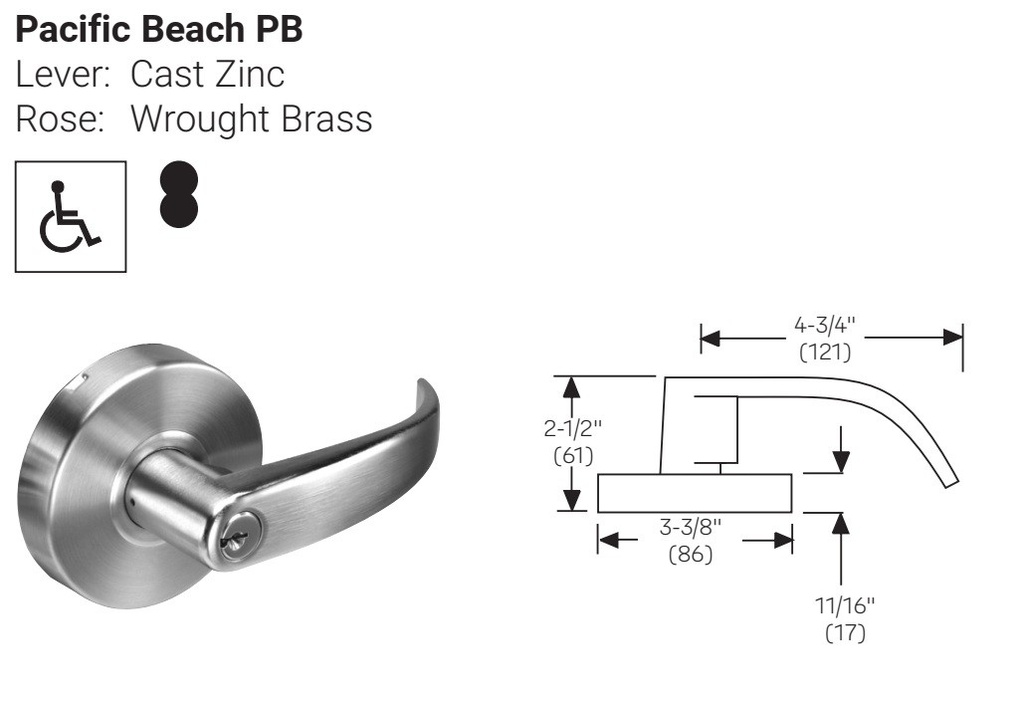

| Lever Style | Pacific Beach (PB) |
| Grade | Grade 2 Standard Duty |
| Door Thickness | Adjustable 1-3/8" (35mm) to 1-3/4" (44mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw Deadlocking |
| Cylinder | Brass, 6-pin, PARA (E1R) Keyway |
| Handing | Non-Handed / Field Reversible |
| Warranty | 3 Year Limited Warranty |
Professional Installation
The Accentra PB 4608LN is built for seamless integration into institutional master key systems. While these cylindrical lever locks are supplied with optional thru bolts, the final installation of the thru bolts is at the discretion of the professional installer, ensuring the hardware is perfectly tailored to the specific door's stability and construction requirements.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F84 - Classroom |
| Trim Design | PB - Pacific Beach |
| Series | Accentra - 4600 Series |
