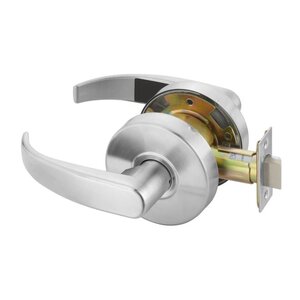

Accentra PB 4601LN Grade 2 Passage Function Cylindrical Lever
Function Information:
- For doors that do not require locking.
- Either lever operates latchbolt at all times.
- ANSI F75
The Accentra PB 4601LN Passage Function Lever (formerly Yale) provides a high-intent solution for commercial openings that demand accessibility without the need for security locking. This Series 4000 Grade 2 Standard Duty cylindrical latchset is a staple for professional environments, offering a robust build that excels in high-traffic interior spaces such as hallways, breakrooms, and supply closets.
Featuring the traditional and ergonomic PB (Pacific Beach) lever design, this hardware is engineered for longevity and ease of use. The Accentra 4600LN series is designed to meet rigorous safety standards while remaining simple for contractors to install on a variety of door types.
Essential Performance Features
- Industrial Durability: Certified ANSI/BHMA A156.2, Series 4000, Grade 2 for consistent performance in light-to-medium commercial applications.
- Superior Fire Protection: UL-cUL listed for all fire doors, supporting ratings up to and including 3 hours.
- Universal Design: This latchset is Non-Handed, allowing for seamless field reversibility to fit any door orientation.
- ADA Compliant: Specifically engineered to meet ADA A117.1 Accessibility Code requirements for barrier-free access.
- Passage Function (ANSI F75): Ideal for non-locking doors where either lever operates the latchbolt at all times.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | PB 4601LN |
| Function | Passage / Hall & Closet (ANSI F75) |
| Series | 4000 Series Cylindrical |
| Grade | Grade 2 Standard Duty |
| Door Thickness | Adjustable 1-3/8" (35mm) to 1-3/4" (44mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw |
| Handing | Non-Handed / Field Reversible |
| Compliance | UL-cUL 3-Hour Fire Rated, ADA, Hurricane Code |
| Warranty | 3 Year Limited Warranty |
Versatile Installation
The Accentra PB 4601LN is built for modern commercial requirements. While these cylindrical lever locks are supplied with optional thru bolts, the final installation of the thru bolts is at the discretion of the installer to ensure the best fit for your specific door preparation.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F75 - Passage |

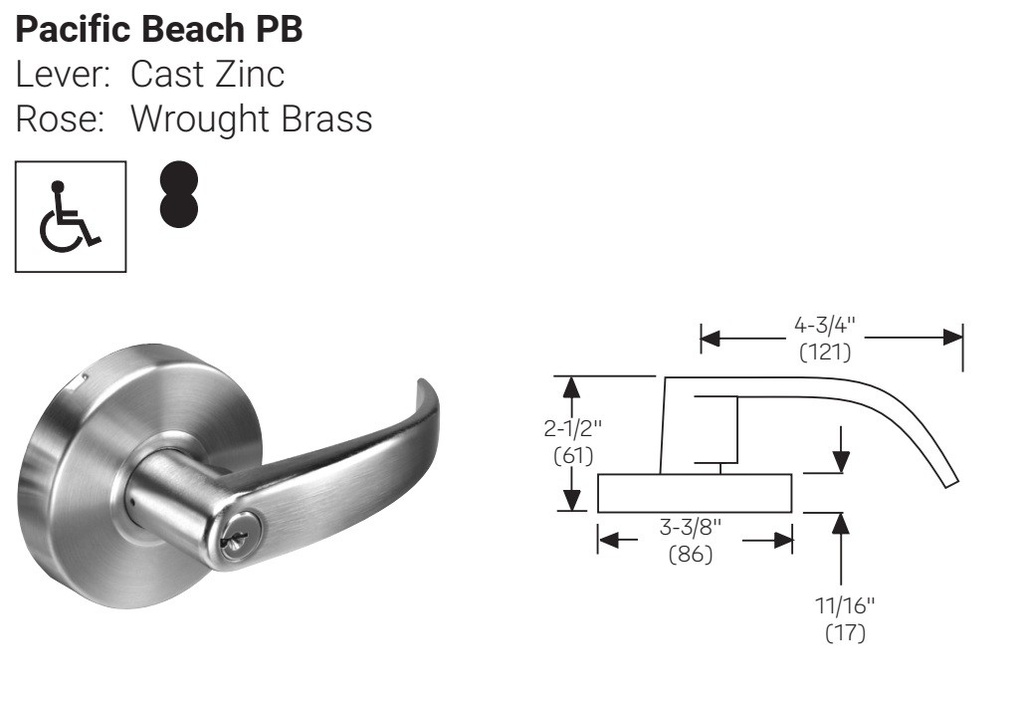

| Trim Design | PB - Pacific Beach |
| Series | Accentra - 4600 Series |
