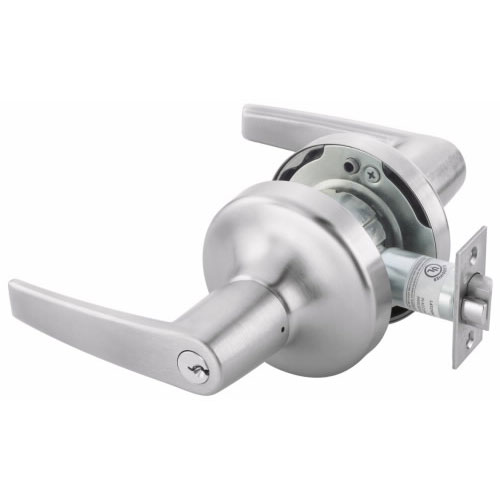

Accentra MO 4708LN Grade 1 Classroom Function Cylindrical Lock
Function Information:
- For classroom or utility room doors.
- Deadlocking latchbolt.
- Either lever operates latchbolt (except when outside lever is locked by key).
- Inside lever always active.
- Key releases outside lever.
- *Lever Handles are Free Wheeling in Locked Position
- ANSI F84
The Accentra MO 4708LN Classroom Lockset (formerly Yale) is a high-intent, heavy-duty security solution engineered to withstand the most demanding institutional environments. As a premier Series 4700LN Grade 1 cylindrical lock, this hardware is the gold standard for schools, universities, and government buildings. The Classroom Function (ANSI F84) provides essential life-safety security: the outside lever is controlled by a key, while the inside lever remains active at all times, ensuring students and staff can always exit the room immediately without a key.
Featuring the contemporary and sleek MO (Monroe) lever design, this lockset incorporates an innovative Free Wheeling security mechanism. When locked, the exterior handle rotates freely, absorbing downward pressure and neutralizing attempts to snap internal components through force or vandalism.
High-Security Performance & Architectural Design
- Grade 1 Heavy-Duty Certified: Certified ANSI/BHMA A156.2, Series 4000, Grade 1, providing maximum structural integrity. Tested to exceed over one million cycles, it is built for the high-traffic corridors of hospitals and modern campuses.
- Vandal-Resistant Free Wheeling: When the lock is engaged, the outside Monroe lever moves independently of the latch. This "no-stress" design prevents intruders from breaking the locking mechanism with excessive torque.
- Classroom Security (F84): The exterior is keyed for controlled access, while the interior lever always retracts the latchbolt. This prevents accidental lock-ins and ensures full compliance with strict emergency exit and fire-life safety codes.

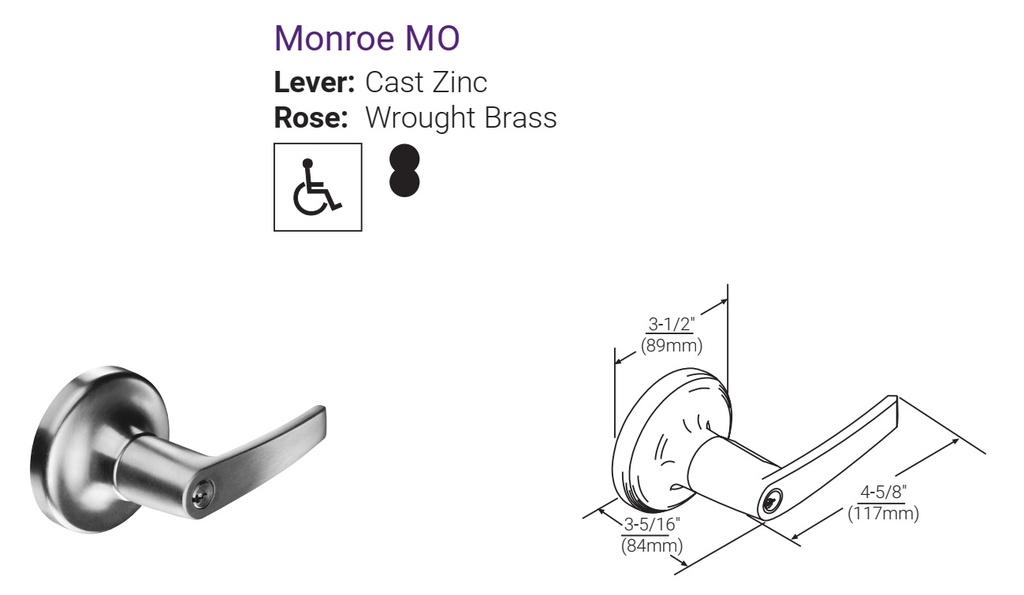

- Contemporary Monroe (MO) Style: Combines a clean, modern aesthetic with an ergonomic grip, making it the perfect choice for professional environments that require both beauty and industrial strength.
- 3-Hour Fire Rating: UL-cUL listed for all fire doors with a rating up to 3 hours, essential for maintaining building envelope integrity and safety.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | MO 4708LN |
| Function | Classroom (ANSI F84) |
| Lever Style | Monroe (MO) |
| Grade | Grade 1 Heavy-Duty |
| Door Thickness | Adjustable 1-3/4" (44mm) to 2" (51mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw Deadlocking |
| Cylinder | Brass, 6-pin, PARA (E1R) Keyway |
| Handing | Non-Handed / Field Reversible |
| Warranty | 7 Year Limited Warranty |
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F84 - Classroom |
| Trim Design | MO - Monroe Lever |
| Series | Accentra - 4700 Series |
