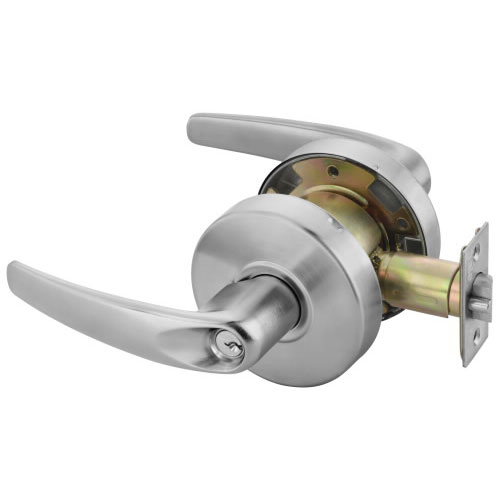

Accentra AU 4608LN Grade 2 Classroom Function Cylindrical Lock
Function Information:
- For classroom or utility room doors.
- Deadlocking latchbolt.
- Either lever operates latchbolt (except when outside lever is locked by key).
- Inside lever always active.
- Key releases outside lever.
- ANSI F84
The Accentra AU 4608LN Classroom Lockset (formerly Yale) is a high-intent commercial security solution specifically engineered for educational facilities, healthcare institutions, and public buildings. As part of the Series 4000 Grade 2 Standard Duty lineup, this cylindrical lockset provides the essential "Classroom Function," which allows an instructor or authorized personnel to control the exterior lever's locked status exclusively via key, preventing unauthorized locking from the inside.
Designed with the sleek and ergonomic AU (Augusta) lever, this hardware offers a professional appearance without sacrificing industrial strength. The Accentra 4608LN is the industry standard for ensuring student safety and facility security, maintaining a constant path for egress while restricting exterior access as needed.
Essential Security & Safety Features
- Classroom Function (ANSI F84): The outside lever is locked or unlocked only by a key. This prevents accidental or unauthorized locking from within the room.
- Life Safety Compliance: The inside lever is always active, ensuring that occupants can always exit the room immediately in an emergency.
- Deadlocking Latchbolt: Features a 1/2" throw deadlocking latchbolt that provides high-level resistance against "shimming" or forced entry attempts.
- Grade 2 Certified: Certified ANSI/BHMA A156.2, Series 4000, Grade 2 for reliable performance in medium-traffic commercial environments.
- Fire & Access Rated: UL-cUL listed for fire doors up to 3 hours and fully compliant with ADA A117.1 Accessibility Codes.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | AU 4608LN |
| Function | Classroom (ANSI F84) |
| Lever Style | Augusta (AU) |
| Grade | Grade 2 Standard Duty |
| Door Thickness | Adjustable 1-3/8" (35mm) to 1-3/4" (44mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw Deadlocking |
| Cylinder | Brass, 6-pin, PARA (E1R) Keyway |
| Handing | Non-Handed / Field Reversible |
| Compliance | UL-cUL 3-Hour Fire Rated, ADA, Hurricane Code |
| Warranty | 3 Year Limited Warranty |
Professional Installation
The Accentra AU 4608LN is designed for efficient setup in schools and offices. While these cylindrical lever locks are supplied with optional thru bolts, the final installation of the thru bolts is at the discretion of the professional installer, ensuring the hardware is perfectly tailored to the specific door's stability and construction.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F84 - Classroom |

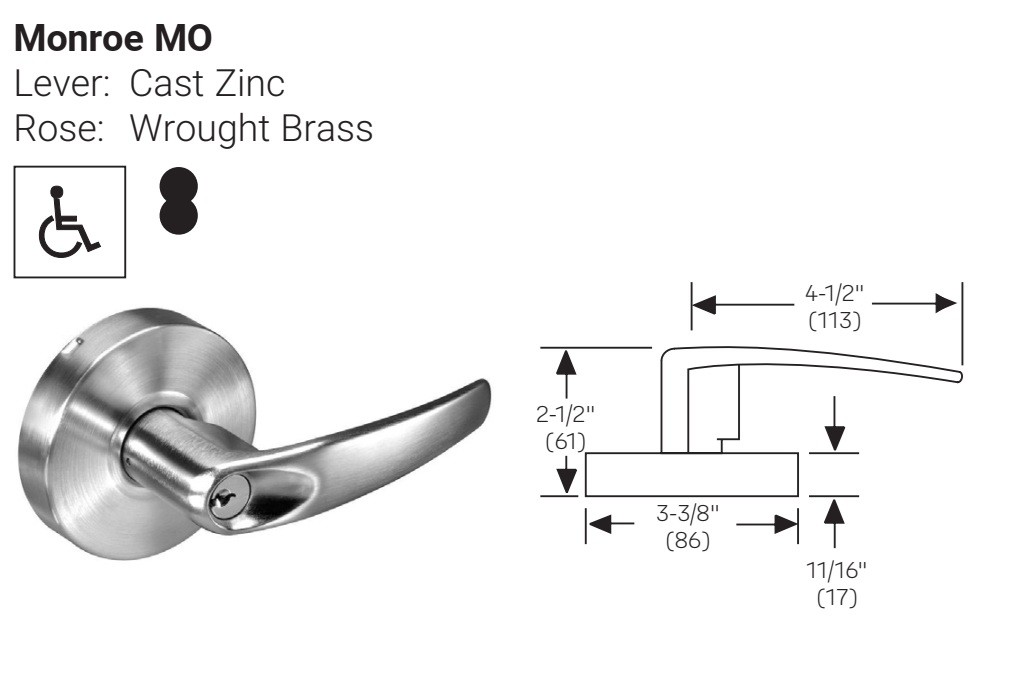

| Trim Design | MO - Monroe Lever |
| Series | Accentra - 4600 Series |
