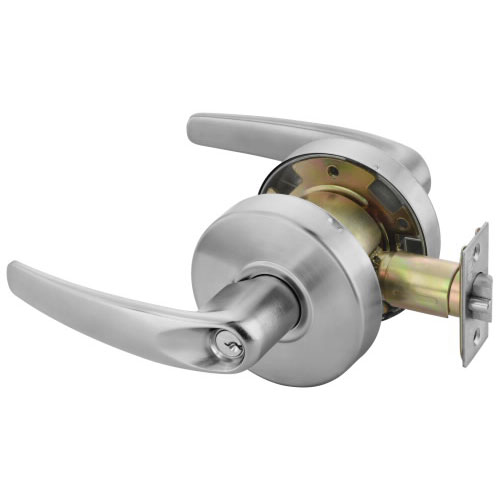

Accentra MO 4605LN Grade 2 Storeroom Function Cylindrical Lock
Function Information:
- For use on storeroom, utility, exit doors.
- Deadlocking latchbolt.
- Latchbolt operated by lever inside, key in outside lever.
- Outside lever always rigid.
- Inside lever always active.
- ANSI F86
The Accentra MO 4605LN Storeroom Lockset (formerly Yale) is a high-intent security solution engineered for commercial spaces that require permanent exterior restriction. This Series 4000 Grade 2 Standard Duty cylindrical lock is the industry standard for securing mechanical rooms, storerooms, and electrical closets where the outside lever must remain locked at all times to prevent unauthorized entry.
Featuring the clean, contemporary MO (Monroe) lever design, this hardware provides a professional look while maintaining maximum security. The Accentra 4605LN ensures the exterior lever is always rigid, requiring a key for every entry, while the interior lever remains active to ensure safe, immediate egress in compliance with life safety codes.
Maximum Security & Performance
- Storeroom Security (ANSI F86): The exterior lever is always fixed and rigid. Entry is only possible via key, while the interior lever is always active for exit.
- Deadlocking Latchbolt: Includes a 1/2" throw deadlocking latchbolt that resists tampering and "shimming" attempts for enhanced protection.
- Grade 2 Industrial Build: Certified ANSI/BHMA A156.2, Series 4000, Grade 2, built to withstand the daily demands of commercial facilities.
- Fire-Rated Integrity: UL-cUL listed for use on fire-rated doors for up to 3 hours, providing essential safety for utility and exit pathways.
- ADA & Accessibility: Complies with ADA A117.1 Accessibility Codes, ensuring the lever is easy to operate for authorized personnel.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | MO 4605LN |
| Function | Storeroom / Utility (ANSI F86) |

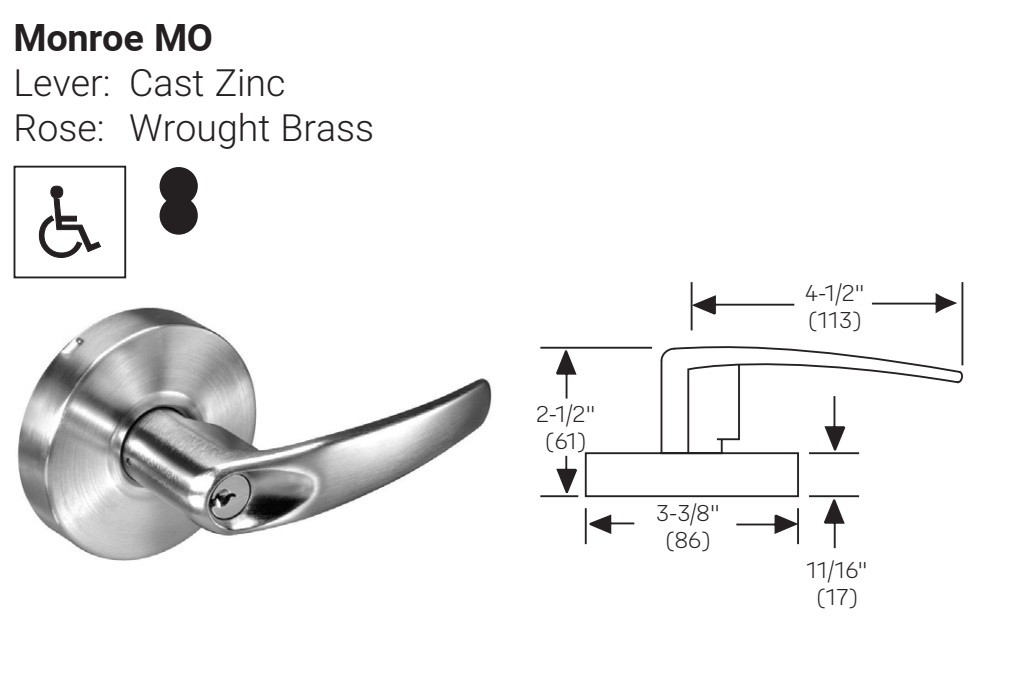

| Lever Style | Monroe (MO) |
| Grade | Grade 2 Standard Duty |
| Door Thickness | Adjustable 1-3/8" (35mm) to 1-3/4" (44mm) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | ANSI 4-7/8" x 1-1/4" x 1-1/4" (ASA Strike) |
| Latchbolt | 1/2" (13mm) Throw Deadlocking |
| Cylinder | Brass, 6-pin, PARA (E1R) Keyway |
| Handing | Non-Handed / Field Reversible |
| Compliance | UL-cUL 3-Hour Fire Rated, ADA, Hurricane Code |
| Warranty | 3 Year Limited Warranty |
Expert Installation
The Accentra MO 4605LN is designed for versatility and ease of setup. While these cylindrical lever locks are supplied with optional thru bolts, the final installation of the thru bolts is at the discretion of the professional installer to best suit the specific door preparation and stability requirements.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F86 - Storeroom |
| Trim Design | MO - Monroe Lever |
| Series | Accentra - 4600 Series |
