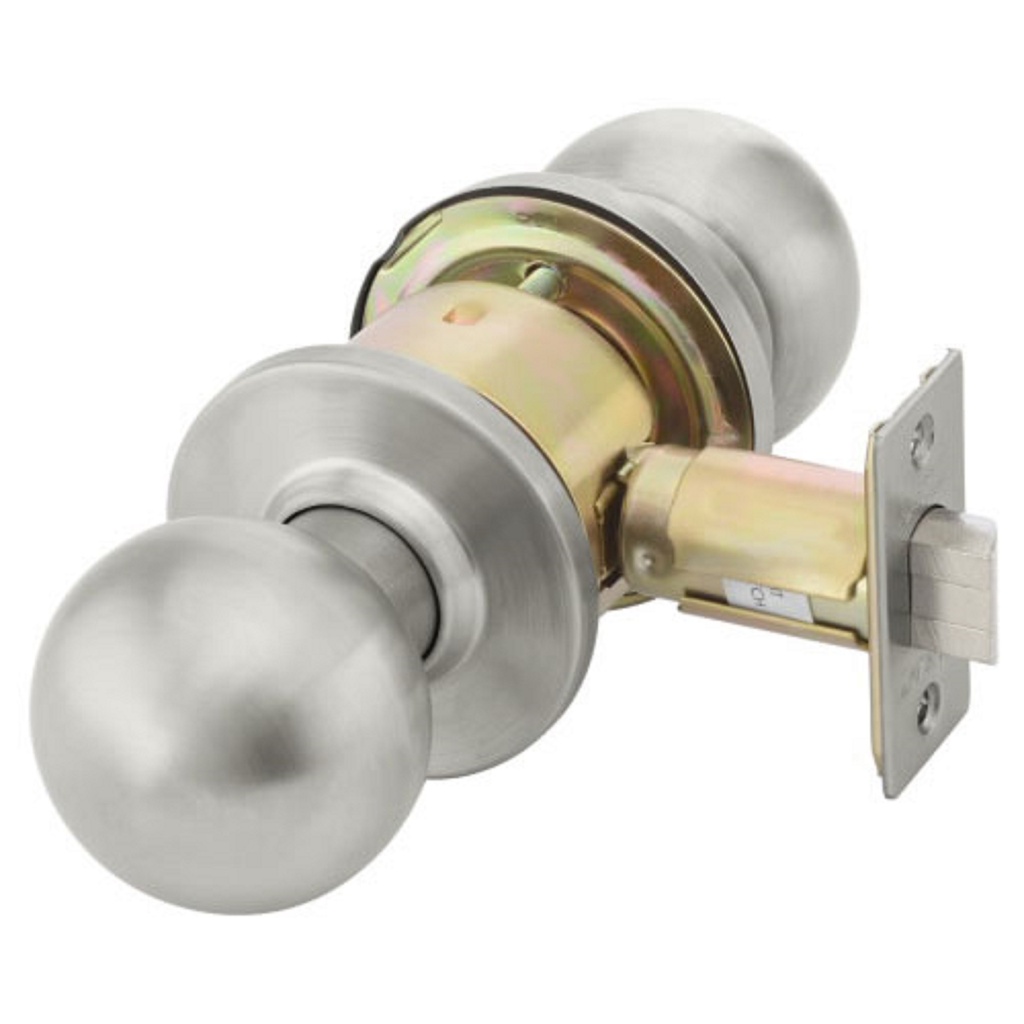

Accentra CA 4601YC Grade 2 Passage Knob Latch
Function Information:
- For doors that do not require locking.
- Either lever operates latchbolt at all times.
- ANSI F75
The Accentra CA 4601YC Passage Knob Latch (formerly Yale) is a premier choice for commercial interior doors that do not require locking. This ANSI/BHMA Grade 2 certified cylindrical lockset is engineered for consistent quality and high-frequency use, making it ideal for closets, hallways, and common areas in schools, offices, and healthcare facilities.
Featuring the elegant California (CA) ball knob design, this lockset offers a traditional aesthetic combined with modern industrial durability. The 4601YC series is designed to provide a budget-friendly solution without sacrificing safety, as it is UL/cUL fire-rated for up to 3 hours. With its non-handed design and field-reversible installation, it offers maximum flexibility for any project.
High-Performance Commercial Features
- ANSI F75 Passage Function: Both the interior and exterior knobs are always active, allowing for immediate operation of the latchbolt at all times.
- California (CA) Knob Design: A professional ball-style knob crafted from high-quality stainless steel or wrought brass for a comfortable grip and long-lasting finish.
- Grade 2 Durability: Tested to meet ANSI/BHMA A156.2 Series 4000 standards, ensuring reliable performance in medium-duty commercial environments.
- Standard 2-3/4" Backset: Supplied with a standard 2-3/4" backset plain latchbolt for typical commercial door preparations.
- ASA Strike Included: Features a heavy-duty 4-7/8" x 1-1/4" ANSI strike with a curved lip to ensure secure and smooth latch engagement.
- Fire Safety Compliant: UL-cUL listed for use on fire doors, meeting NFPA 80 requirements for life safety and building codes.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | CA 4601YC |
| Function | Passage / Closet (ANSI F75) |
| Certification | ANSI/BHMA Grade 2 (A156.2 Series 4000) |
| Backset | 2-3/4" (70mm) Standard |
| Strike | 4-7/8" x 1-1/4" ASA Strike (Curved Lip) |
| Door Thickness | Adjustable 1-3/8" to 1-3/4" |
| Handing | Non-Handed (Field Reversible) |
| Fire Rating | UL-cUL Listed (Up to 3 Hours) |
| Latchbolt Throw | 1/2" (13mm) Plain Latch |
| Warranty | 3-Year Limited Mechanical Warranty |
Versatile Installation & Maintenance
The Accentra CA 4601YC is designed for a simple bored-hole installation on wood or metal doors. Because it is part of the Accentra 4600YC series, it provides a uniform look when installed alongside other functions like the Accentra CA 4602YC Privacy Knob or the Accentra CA 4607YC Entrance Knob.
This model is typically available in professional architectural finishes such as Satin Chrome (626) and Satin Stainless Steel (630) to complement your existing hardware. For doors that require a shorter backset, an optional 2-3/8" latch is also available through DoorwaysPlus.com.
| Finish with BHMA code | 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 629 - US32 Polish Stainless |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F75 - Passage |

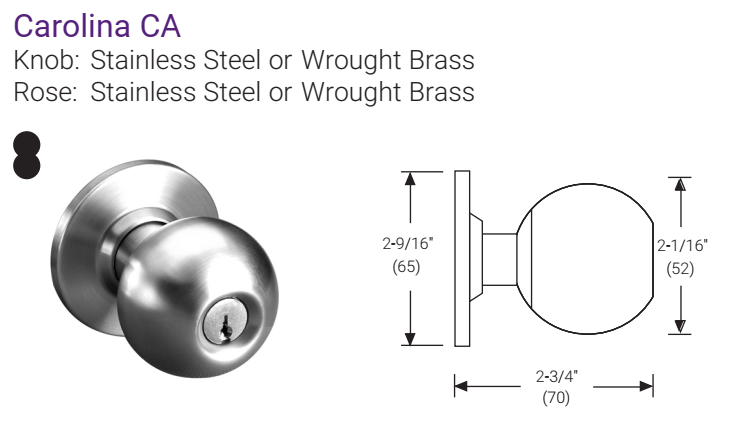

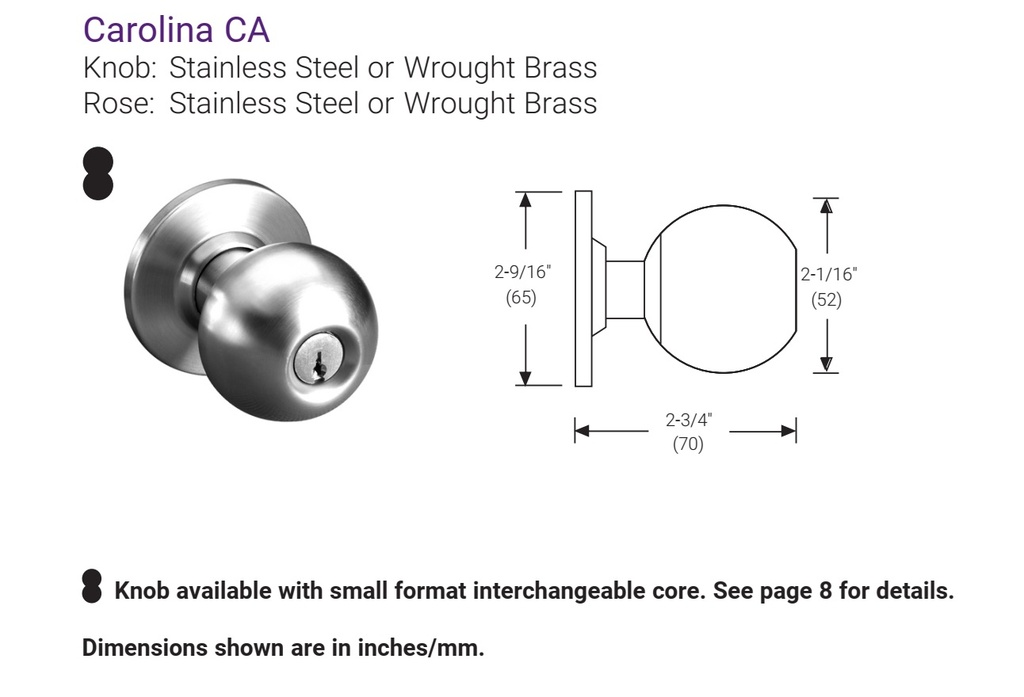

| Trim Design | CA - Carolina Knob |
| Series | Accentra - 4600 Series |
