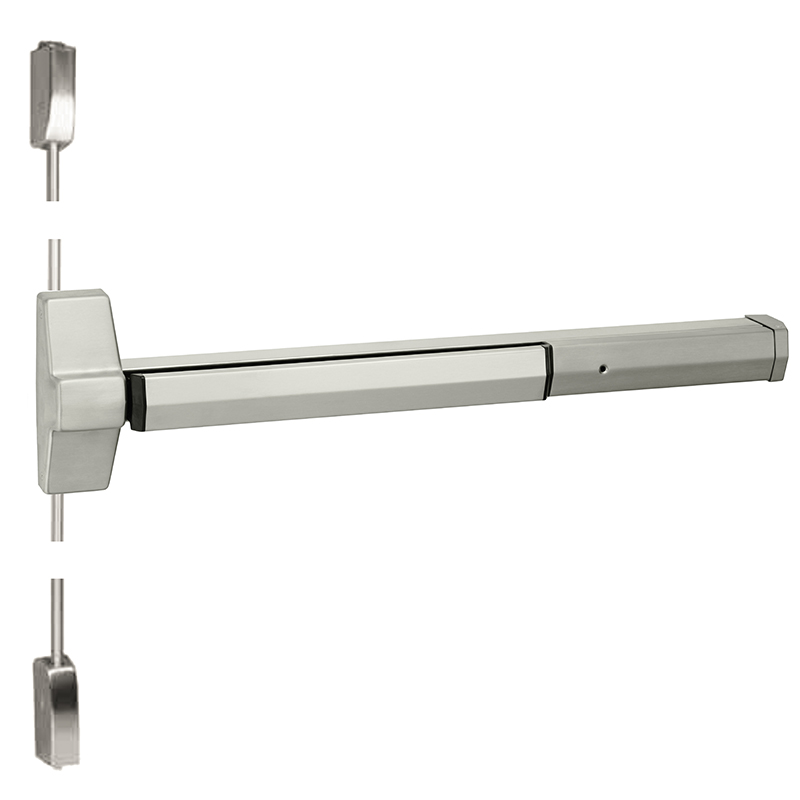

Accentra 7110F Grade 1 Fire-Rated Surface Vertical Rod Exit Device | 36" x 84" Door | US32D Stainless Steel
The Accentra 7110F Fire-Rated Surface Vertical Rod (SVR) Exit Device (formerly Yale) is a high-intent, life-safety solution engineered for the most demanding commercial fire-door applications. This ANSI/BHMA Grade 1 certified panic bar is specifically designed for 36" x 84" fire-labeled doors, providing a 3-hour fire rating for pairs of doors. Finished in a premium US32D (630) Satin Stainless Steel, this device combines industrial-strength durability with a modern, professional aesthetic.
Built for heavy-duty use in schools, healthcare facilities, and government buildings, the 7110F Series provides essential two-point latching. By securing the door at both the top header and the floor, this device ensures maximum structural integrity and smoke containment during a fire event, while allowing for immediate, effortless egress for building occupants.
Elite Fire Safety & Structural Security
- 3-Hour Fire Rated Performance: UL/cUL Listed for fire exit hardware (GXHX) on pairs of doors up to 8' x 8', meeting the strictest life-safety building codes.
- Grade 1 Heavy-Duty Durability: Tested to exceed ANSI/BHMA A156.3 Type 2 standards, ensuring millions of reliable cycles in high-traffic institutional corridors.
- Two-Point Deadlocking: Features a 3/4" throw Pullman-type top latch and a 5/8" bottom deadbolt to provide superior perimeter security and door stability.
- Architectural Stainless Steel Finish (US32D): The satin stainless steel construction offers the highest level of corrosion resistance and longevity in high-frequency use areas.
- Bolt Retraction Technology: The bottom deadbolt is held retracted during the door swing to prevent floor dragging and damage, ensuring smooth operation.
- Code-Compliant Operation: In accordance with fire-life safety regulations, this fire-rated model is non-dogging, ensuring the door remains latched at all times to contain fire and smoke.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 7110F (Exit Only) |
| Device Type | Fire-Rated Surface Vertical Rod (SVR) |
| Fire Rating | UL 10C / 3-Hour Listed |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Finish | US32D / 630 (Satin Stainless Steel) |
| Door Size Compatibility | 36" Width x 84" Height (3'0" x 7'0") |
| Minimum Stile Width | 4-1/2" (114mm) |
| Top Latchbolt | 3/4" Pullman-Type with Auto Deadlatching |
| Fasteners | Thru Bolts (Sex Nuts & Bolts) Shipped Standard |
| Warranty | 5-Year Limited Warranty |
Professional Installation & Accessory Compatibility
The Accentra 7110F is designed for a permanent, high-strength mount. To meet the requirements of fire-rated door manufacturers and to ensure the hardware never loosens under constant use, this device is supplied standard with thru bolts for a secure "sandwich-style" attachment. While this configuration is "Exit Only," it is fully compatible with Accentra Exit Device Trim, such as the 620F Series Escutcheon or 540F Series Rose Trim, for applications requiring exterior keyed access.
Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture below to your opening for clarification.
| Door Handing | RHR or LHR |
| Brand | Accentra (formally Yale Security) |
| Exit Device Type | SVR Exit Device |
| Series | Accentra - 7000 Series |
| Door Opening Width | 36 Inches |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Door Height | 7'0" Dr Ht |
| Exit Device Fire Rating | Fire Rated Door |
