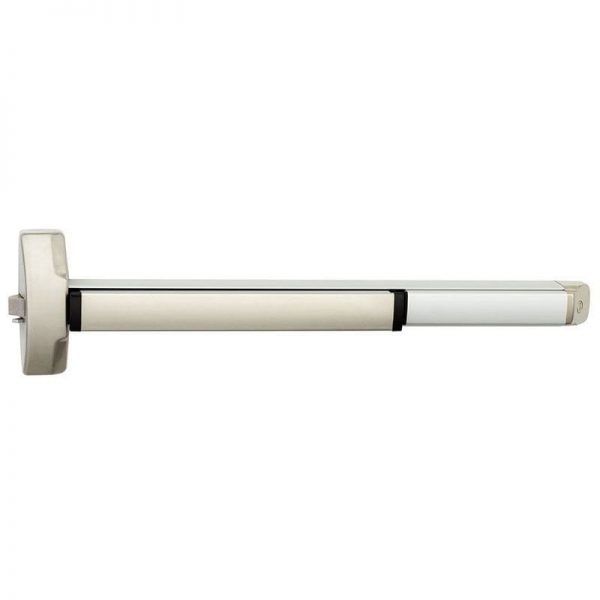

Accentra 6100F-ED Grade 1 Fire-Rated Rim Exit Device | Exit Only
The Accentra 6100F-ED Rim Exit Device (formerly Yale) is an architectural-grade, heavy-duty life safety solution designed for high-traffic commercial environments where fire-door compliance is mandatory. This Grade 1 Fire-Rated Exit Device combines the sleek, modern aesthetics of the 6000 Series with industrial-strength protection, ensuring a 3-hour fire rating on single doors or pairs of doors when used with a fire-rated removable mullion.
Engineered with a robust steel chassis and an attractive aluminum rail, the 6100F-ED provides smooth, quiet operation through its unique noise-reduction design. The 3/4" stainless steel deadlocking Pullman latchbolt delivers high-security engagement with the strike, providing superior resistance to vandalism and forced entry while ensuring immediate egress during emergency events.
Premium Fire Safety & High-Performance Features
- 3-Hour Fire Rated: UL/cUL Listed for fire exit hardware on doors up to 4' x 8' (single) and 8' x 8' (pairs), meeting the strictest building codes for schools, hospitals, and office complexes.
- ANSI/BHMA Grade 1 Certified: Tested to exceed A156.3 Type 1 standards, ensuring durability and reliability over millions of operational cycles.
- Modern Architectural Design: Features a stylish aluminum rail with an architecturally finished touch bar and heavy-duty angled end caps to eliminate catch points.
- Smooth & Quiet Egress: The specialized internal mechanism reduces the "clatter" typical of standard panic bars, making it ideal for quiet environments like libraries or healthcare wards.
- Vandal Resistant Engineering: The low-profile design and durable components are built to withstand heavy use and abuse in high-traffic corridors.
- Completely Reversible: The non-handed design allows for easy field installation on both left and right-hand reverse doors, reducing job-site complexity.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 6100F-ED (Exit Only) |
| Device Type | Fire-Rated Rim Exit Device |
| Fire Rating | UL 10C / 3-Hour Listed |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Door Widths | 36" (fits 30"-36" doors) or 48" (fits 42"-48" doors) |
| Door Thickness | 1-3/4" (44mm) Standard |
| Minimum Stile Width | 4-1/2" (114mm) |
| Latchbolt | 3/4" (19mm) Deadlocking Stainless Steel Pullman-Type |
| Standard Strike | 757F |
| Dogging Feature | None (Fire-rated devices do not allow mechanical dogging) |
| Finishes | 630 (Satin Stainless Steel) or BSP (Black Suede Powder Coat) |
| Warranty | 10-Year Limited Warranty |
Professional Installation & Code Compliance
The Accentra 6100F-ED is designed for high-strength mounting. In strict accordance with fire-rated door standards, this device is supplied standard with thru bolts to ensure a secure "sandwich-style" attachment that will not loosen or pull through the door under heat or heavy use. While this configuration is "Exit Only," it is fully compatible with Accentra Exit Device Trim, such as the 620F Series Escutcheon or 440F Series Rose Trim, for applications requiring keyed exterior access.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or BSP - Black Suede Power Coat |
| Door Opening Width | 36 Inches or 48 Inches |
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - 6000 Series |
| Exit Device Type | Rim Exit Device |
| Exit Device Fire Rating | Fire Rated Door |
