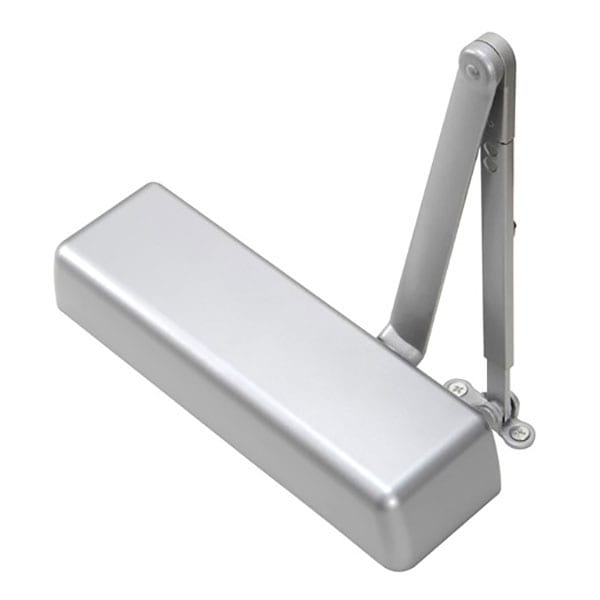

Accentra 5801 Heavy Duty Door Closer - Regular or Parallel Arm Mounting
The Accentra 5801 Heavy Duty Door Closer (formerly the Yale 5800 Series) is a premier, industrial-grade solution designed for high-traffic commercial environments that demand the ultimate in durability and strength. Engineered with a rugged Cast Iron body, the 5801 is the professional’s choice for facilities requiring a robust, economical closer that does not sacrifice performance or aesthetics.
As an ANSI/BHMA Grade 1 certified closer, this unit is built to withstand millions of cycles in demanding locations such as schools, hospitals, and government buildings. Its heavy-duty construction makes it a direct retrofit for the LCN 4040, allowing for a seamless upgrade to a more cost-effective yet equally durable door control solution.
Industrial-Strength Features & Universal Mounting
- Rugged Cast Iron Construction: The high-strength cast iron body and precision rack-and-pinion mechanism provide superior wear resistance and consistent performance in extreme high-use applications.
- Universal Tri-Packed Versatility: Every unit includes all necessary components for Regular Arm, Parallel Arm, or Top Jamb mounting. This provides total job-site flexibility for both push and pull-side installations.
- Fully Adjustable Spring Power (Sizes 1-6): The adjustable spring tension allows for precise tuning. Set it to a low opening force for ADA accessibility compliance or maximize the power for heavy exterior perimeter doors.
- Triple Valve Precision Control: Features independent, non-critical adjustment valves to customize Closing Speed, Latching Speed, and Backcheck. The Backcheck valve is essential for cushioning the door during a forceful opening, protecting the frame and adjacent walls.
- Professional Full Plastic Cover: Shipped with a sleek, full-size plastic cover that conceals all mounting fasteners and adjustment valves for a clean, tamper-resistant architectural finish.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 5801 |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.4) |
| Body Material | Heavy-Duty Cast Iron |
| Power Size | Fully Adjustable Sizes 1–6 |
| Mounting | Tri-Packed (Regular, Parallel, Top Jamb) |
| Adjustment Valves | Sweep (Closing), Latch, and Backcheck |
| Certifications | UL/cUL Listed, UL10C (3-Hour Fire), ADA Compliant |
| Retrofit Compatibility | LCN 4040 Pattern |
| Fasteners | Sleeve Nuts (Thru Bolts) included standard |
| Warranty | 10-Year Limited Warranty |
Professional Installation & Structural Reliability
The Accentra 5801 is designed for a permanent, high-strength attachment to ensure the hardware remains secure on hollow metal or wood doors. To prevent the closer from loosening or pulling through the door over time—especially in high-abuse corridors—this unit is shipped standard with sleeve nuts (thru bolts). This "sandwich-style" mounting method provides the structural integrity required for long-term safety and reduced maintenance costs.
| General - US Finishes | 689 - Spray Alumimun or 690 - Spray Dark Bronze or BSP - Black Suede Power Coat |
| Brand | Accentra (formally Yale Security) |
| Closer Arm Type | Tri Pack - Reg/Par Arm |
| Series | Accentra - 5800 Series |
| Hold Open | Non-Hold Open |
| Closer Body Hole Pattern | 1"/3"/1" x 2 1/4" (LCN 4040) |
