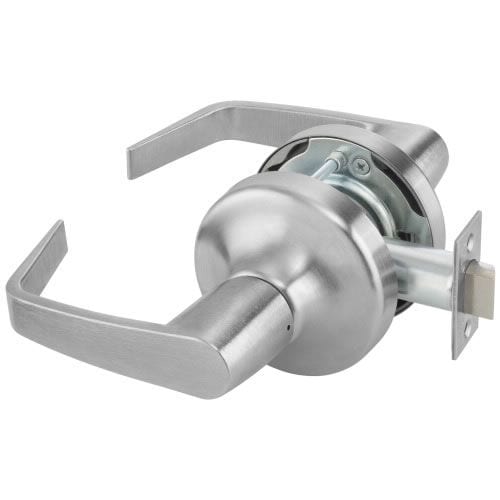

Accentra 5401LN Grade 1 Passage Cylindrical Latchset — Augusta Lever, 626 Satin Chrome
The Accentra 5401LN is a Grade 1 cylindrical passage latchset from the Accentra 5400 Series (formerly Yale Security), featuring the Augusta (AU) lever in 626 Satin Chrome (US26D) finish. Rated to ANSI/BHMA A156.2 Grade 1 and configured for ANSI F75 Passage function, this latchset is engineered for high-traffic commercial interiors where free passage in both directions is required — no keying, no turning of a thumbturn, simply push or pull to enter.
ANSI F75 Passage Function — What It Means
An ANSI F75 Passage latchset has a spring-actuated latch that retracts whenever lever pressure is applied from either side. There is no locking mechanism. This function is ideal for corridors, open-office doors, conference rooms, and other interior openings that must remain freely accessible at all times.
Grade 1 Features & Benefits
- ANSI/BHMA A156.2 Grade 1 Certified: Meets the highest commercial duty rating for cylindrical locksets, designed to withstand the demanding cycle counts of institutional and commercial environments.
- Augusta (AU) Lever Design: A clean, architectural lever profile suited to commercial and light-institutional interiors; ADA-compliant lever operation allows single-handed, low-effort actuation.
- 626 Satin Chrome Finish (US26D): Corrosion-resistant satin chrome finish coordinates with a wide range of commercial door hardware suites and architectural hardware schedules.
- Cylindrical Chassis Construction: Standard cylindrical (bored lock) format installs in a 2-1/8 in. cross-bore — compatible with industry-standard door preparations per ANSI A115.2.
- 2-3/4 in. Standard Backset: Ships pre-set at the industry-standard 2-3/4 in. backset; optional backsets available per Accentra 5400 Series door prep templates (doc AADSS1090376 / AADSS1090377).
- Fits Standard Door Thickness: Compatible with doors from 1-3/8 in. to 2 in. standard thickness (2 in. to 2-1/4 in. with special adjustment), covering the majority of commercial hollow-metal and wood door applications.
- ASSA ABLOY FlashShip Program: Ships within 1 business day through the ASSA ABLOY FlashShip expedited fulfillment program.
Typical Applications
- Office corridor and interior suite doors
- Conference and meeting rooms
- Break rooms and open-plan interior openings
- Commercial tenant improvement and renovation projects
- Replacement of Grade 1 passage latchsets in existing hollow-metal or wood door frames
Technical Details
| Feature | Details |
|---|---|
| Model Number | 5401LN |
| Brand | Accentra (formerly Yale Security) |
| Series | 5400 Series — Grade 1 Cylindrical |
| ANSI Function | F75 — Passage (free egress and entry, no locking) |

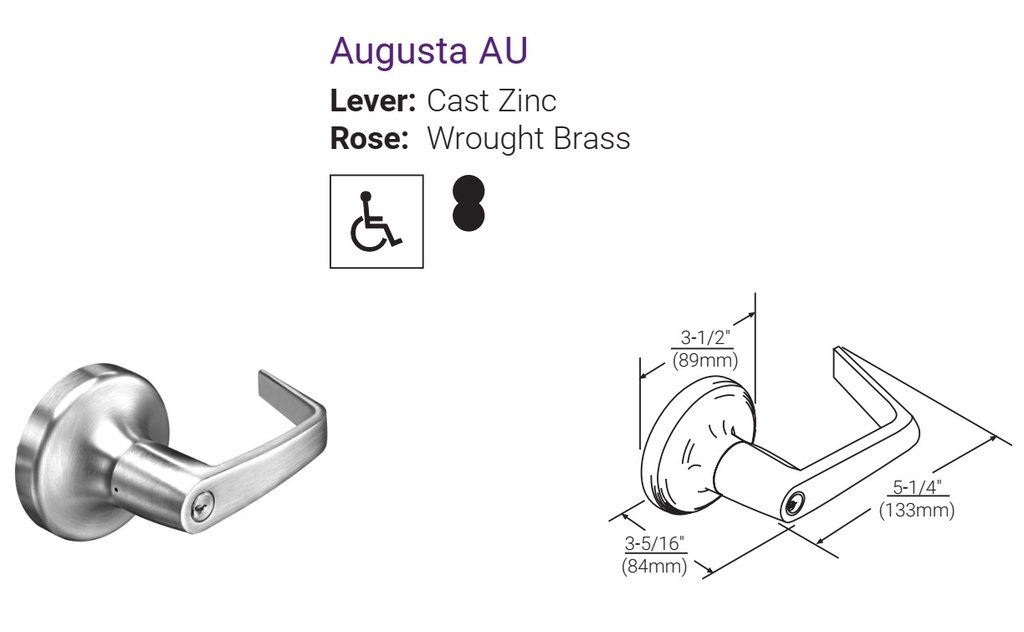

| Lever Design | AU (Augusta) |
| Finish | 626 — Satin Chrome (US26D) |
| Grade / Standard | ANSI/BHMA A156.2 Grade 1 |
| Backset | 2-3/4 in. (standard) |
| Cross-Bore Diameter | 2-1/8 in. (54 mm) |
| Door Thickness (Standard) | 1-3/8 in. to 2 in. |
| Door Thickness (Special) | 2 in. to 2-1/4 in. |
| Chassis Type | Cylindrical (bored lock) |
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F75 - Passage |
| Trim Design | AU - Augusta Lever |
| Series | Accentra - 5400 Series |
