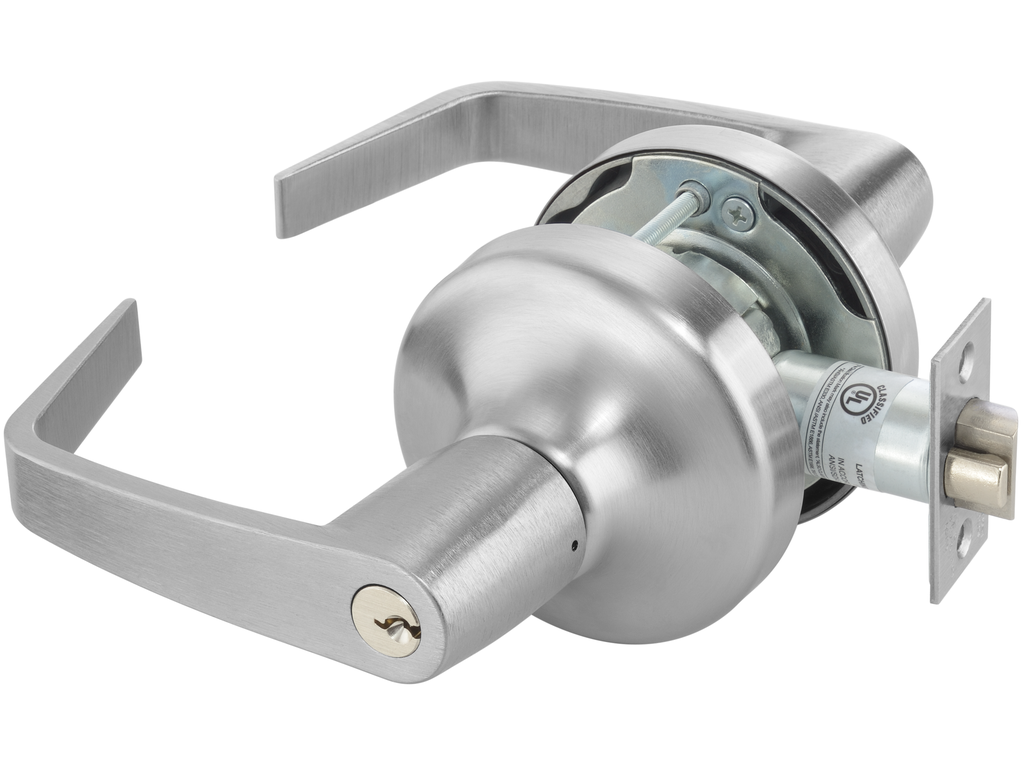

Accentra 5307LN Grade 2 Cylindrical Office Entry Lockset — Augusta (AU) Lever, 626 Satin Chrome
The Accentra 5307LN is a Grade 2 cylindrical lockset from the Accentra 5300LN Series (formerly Yale Security, now part of ASSA ABLOY). Configured for the Office Entry function (ANSI F81) and dressed with the Augusta (AU) lever in 626 Satin Chrome (US26D), this lockset is a proven choice for light-to-medium commercial applications where controlled access to private offices and secured interior doorways is required. The 5300LN Series uses a cylindrical (bored) chassis and is designed for straightforward installation into standard prep doors — both hollow metal and wood — using the manufacturer's ANSI A115.2 door preparation.
ANSI F81 — Office Entry Function Explained
ANSI F81 (Office Entry) operates as follows: the outside lever is always locked and can only be retracted by key or by a thumbturn/button on the inside. The inside lever is always free, allowing unrestricted egress at all times. This makes F81 ideal for private offices, administrative areas, and secured rooms where controlled entry is needed without compromising exit safety.
Key Features & Benefits
- ANSI/BHMA A156.2 Grade 2: Meets commercial-grade performance standards for light-to-medium duty commercial door openings.
- Augusta (AU) Lever Design: Clean, architectural lever profile suited for a wide range of commercial interiors.
- 626 Satin Chrome Finish (US26D): Corrosion-resistant satin chrome finish compatible with standard commercial hardware schedules; matches widely specified trim families.
- Cylindrical (Bored) Chassis: Installs in standard 2-1/8 in. cross-bore prep; compatible with ANSI A115.2 door preparation for hollow metal and wood doors.
- 2-3/4 in. Backset: Standard commercial backset; optional backsets available — confirm at order.
- Keyway Flexibility: Available in Yale PARA E1R or Schlage C keyway — specify at time of order to match existing masterkey systems.
- ASSA ABLOY FlashShip Program: Ships in 1 business day, minimizing project delays for contractors and facility managers.
- Accentra (formerly Yale Security): A preferred commercial hardware line known for stable product architecture and part-level serviceability.
Typical Applications
- Private office and administrative suite entry doors
- Interior secured rooms in commercial office buildings
- Light institutional and corporate campus interiors
- Replacement locksets on existing standard cylindrical prep doors
Technical Details
| Feature | Details |
|---|---|
| Brand | Accentra (formerly Yale Security) |
| Model Number | 5307LN |
| Series | 5300LN (Grade 2 Cylindrical) |
| Part Type | Cylindrical Lockset (Bored) |
| ANSI Function | F81 — Office Entry |
| ANSI/BHMA Grade | Grade 2 (ANSI/BHMA A156.2) |

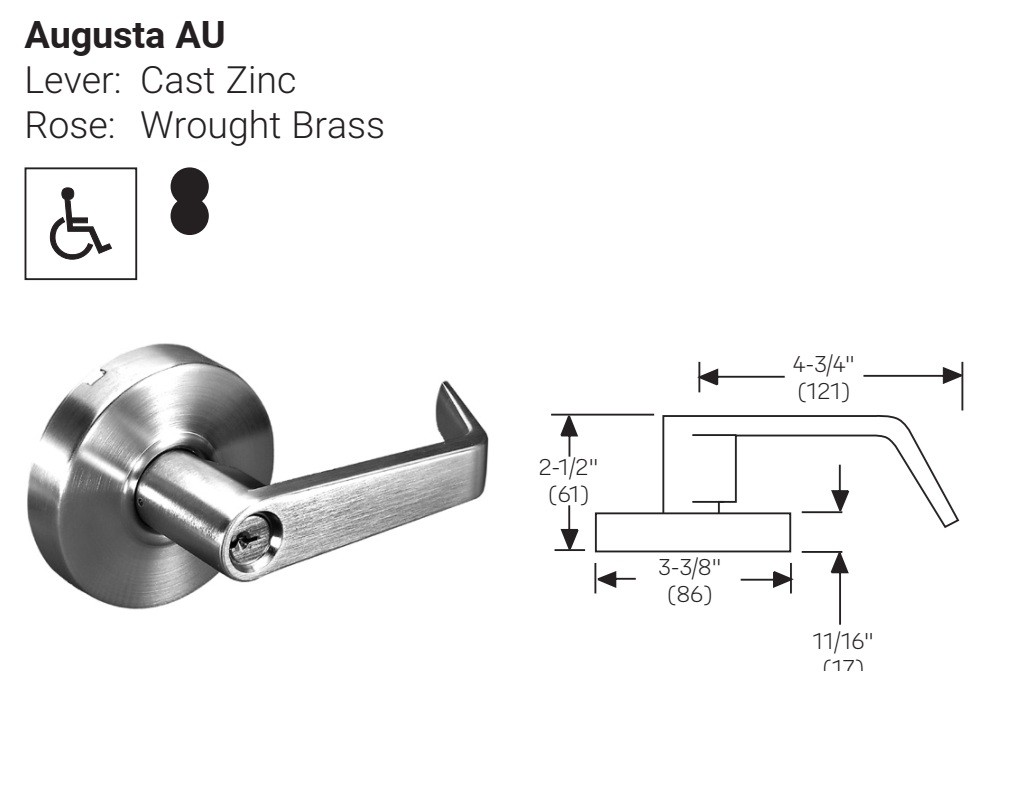

| Lever Design | AU (Augusta) |
| Finish | 626 Satin Chrome (US26D) |
| Backset | 2-3/4 in. standard (optional backsets available) |
| Door Prep | ANSI A115.2 cylindrical; 2-1/8 in. cross-bore; HM and wood doors |
| Keyway Options | Yale PARA E1R or Schlage C (specify at order) |
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F81 - Office Entrance |
| Trim Design | AU - Augusta Lever |
| Series | Accentra - 5300 Series |
