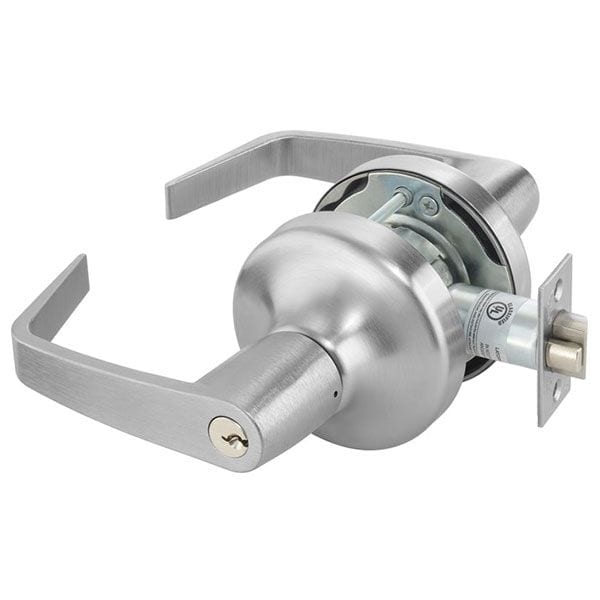

Accentra 5305LN Augusta (AU) Grade 2 Storeroom Cylindrical Lockset — 5300 Series | ANSI F86 | Finish 626 Satin Chrome
The Accentra 5305LN is a Grade 2 cylindrical lockset in the 5300LN Series, manufactured by Accentra (formerly Yale Security), an ASSA ABLOY brand. This unit features the Augusta (AU) lever in 626 (US26D Satin Chrome) finish and is configured for the Storeroom function (ANSI/BHMA F86). It installs on a standard 2-1/8" diameter bored hole with a 2-3/4" backset and is compatible with both hollow metal and wood doors ranging from 1-3/8" to 1-3/4" standard thickness (1-3/4" to 2-1/4" with optional components). The 5300 Series uses a cylindrical chassis with a 1-1/8" wide front on hollow metal applications and a flat front option for wood doors — consistent with ANSI A115.2 prep requirements. Keyway options include Yale PARA E1R or Schlage C (specify at time of order). Ships via ASSA ABLOY FlashShip in 1 business day.
ANSI F86 Storeroom Function — What It Does
ANSI/BHMA F86 Storeroom function means the outside lever is always locked and can only be retracted by key. The inside lever is always free for immediate egress — no key required from the interior. This function is commonly specified for stock rooms, utility closets, IT closets, server rooms, pharmacies, and any secured space where exterior access must be key-controlled at all times while interior egress remains unrestricted.
Key Features & Benefits
- ANSI/BHMA A156.2 Grade 2 Rated: Meets commercial-duty cycle and force requirements for light-to-medium commercial applications including offices, schools, and healthcare facilities.

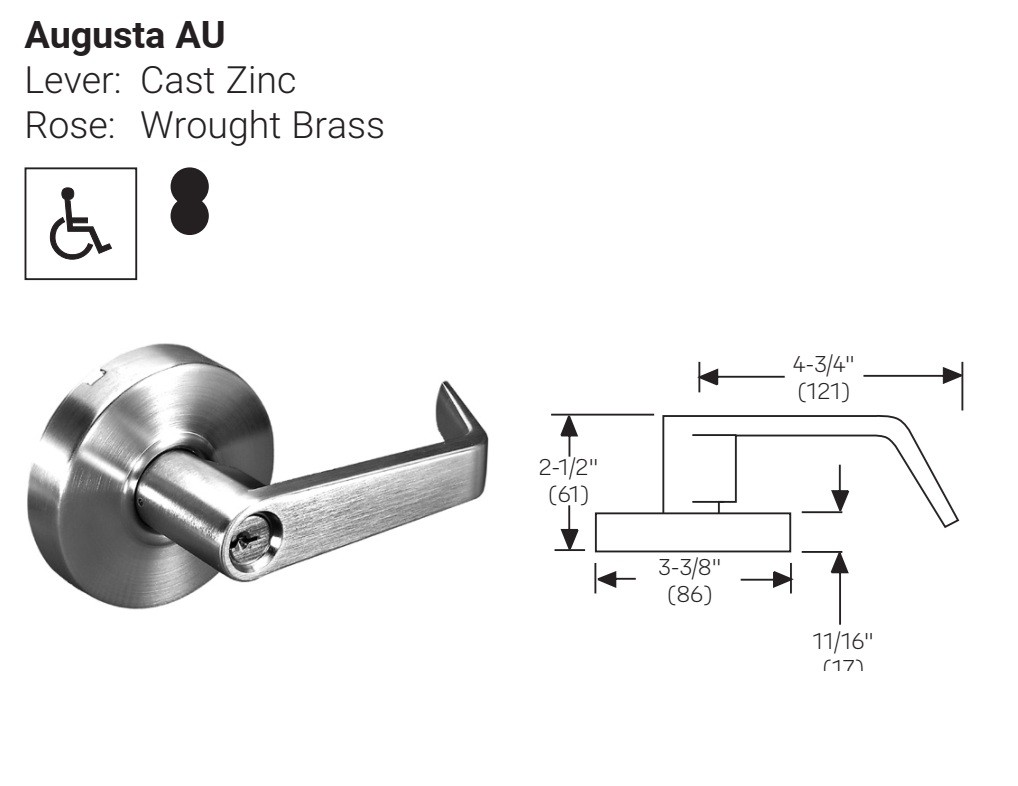

- Augusta (AU) Lever Design: Ergonomic, ADA-compliant lever profile well-suited to high-touch institutional environments.
- 626 Satin Chrome Finish (US26D): Corrosion-resistant finish ideal for interior corridors; coordinates with a wide range of commercial hardware schedules.
- Cylindrical Chassis: Standard bored-hole installation on 2-1/8" dia. cross-bore; compatible with both hollow metal and wood door preparations per ANSI A115.2.
- 2-3/4" Standard Backset: Fits the most common commercial door edge prep; optional backsets available per the 5300 Series template.
- Keyway Flexibility: Available in Yale PARA E1R or Schlage C keyways — facilitates integration into existing master key systems.
- FlashShip Program: Qualifies for ASSA ABLOY FlashShip 1-business-day shipping, minimizing project delays.
Typical Applications
- Storerooms, stock rooms, supply closets
- IT server rooms and communications closets
- School and university utility rooms
- Healthcare medication and equipment storage
- Office and light commercial secured storage areas
Technical Details
| Feature | Details |
|---|---|
| Brand | Accentra (formerly Yale Security) — an ASSA ABLOY brand |
| Model Number | 5305LN AU 626 |
| Series | 5300LN (Grade 2 Cylindrical) |
| ANSI Function | F86 — Storeroom (outside always locked by key; inside always free) |
| Grade | ANSI/BHMA A156.2 Grade 2 |
| Lever Style | AU — Augusta |
| Finish | 626 / US26D — Satin Chrome |
| Backset | 2-3/4" standard (optional backsets available per 5300 Series template) |
| Cross-Bore Diameter | 2-1/8" (standard bored prep, ANSI A115.2) |
| Door Thickness (Standard) | 1-3/8" to 1-3/4" standard; 1-3/4" to 2-1/4" with optional components |
| Latch Front Width | 1-1/8" wide (hollow metal); flat front available for wood doors |
| Keyway Options | Yale PARA E1R or Schlage C (specify at order) |
| Chassis Type | Cylindrical |
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F86 - Storeroom |
| Trim Design | AU - Augusta Lever |
| Series | Accentra - 5300 Series |
