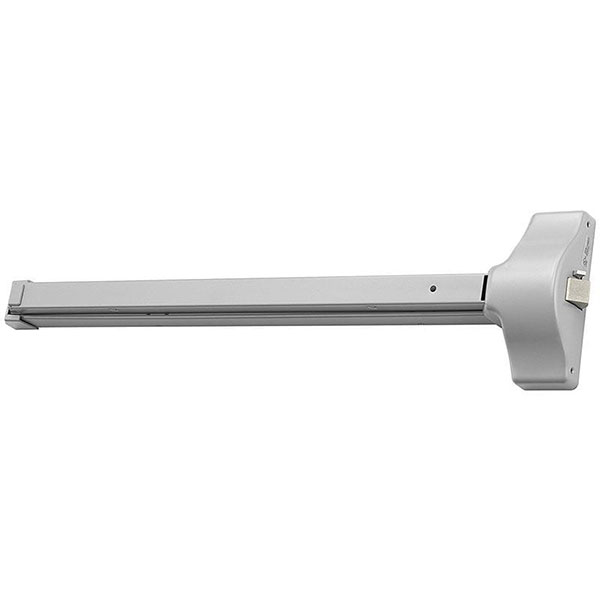

Accentra 1800 Rim Exit Device | Grade 1 Panic Rated Exit Only
The Accentra 1800 Rim Exit Device (formerly Yale) is a high-intent, industrial-grade life safety solution engineered for high-traffic commercial openings. Designed for reliability and ease of use, this Grade 1 Rim Exit Device is the industry standard for retail stores, office buildings, and schools. Whether installed on single swing doors or pairs of doors with a mullion, the 1800 Series provides a secure, "Exit Only" solution that ensures building occupants can evacuate quickly and safely during an emergency.
Constructed for use on wide stile doors made of metal, wood, or composite materials, this device features a clean, low-profile design that minimizes projection into the clear opening width. With its non-handed architecture and durable aluminum finish, it is the premier choice for contractors looking for a dependable, high-performance panic bar.
Ultimate Life Safety & Security Features
- ANSI/BHMA Grade 1 Certified: Rigorously tested to meet A156.3 Type 1, Grade 1 standards, ensuring maximum durability and structural integrity for the most demanding commercial applications.
- Non-Handed Versatility: The universal design allows the device to be installed on both left and right-hand doors, simplifying the ordering process and reducing job-site installation errors.
- Hex Key Dogging: Shipped standard with hex key dogging, allowing authorized personnel to manually retract the latchbolt and keep the bar depressed during high-traffic business hours.
- Wide Stile Compatibility: Specifically designed for doors with a minimum stile width of 4-1/2", providing a stable and secure mount for standard commercial entrances.
- Flexible Applications: Suitable for single doors or pairs of doors (when used with a Removable Mullion [link]), making it a versatile component of any facility’s hardware schedule.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | 1800 (Exit Only) |
| Device Type | Rim Exit Device (Panic Rated) |
| Grade | Grade 1 Heavy-Duty |
| Door Width | -36 (for 30"-36" doors) or -48 (for 42"-48" doors) |
| Door Thickness | 1-3/4" (44mm) Standard |
| Minimum Stile | 4-1/2" (114mm) |
| Projection | 2-1/2" Active / 1-3/4" Depressed |
| Strike | 757F Standard |
| Dogging | Hex Key Dogging (Standard) |
| Finishes | 689 (Aluminum Silver) |
| Warranty | 1-Year Limited Warranty |
Professional Installation & Configuration
The Accentra 1800 is engineered for permanent, high-strength performance. For maximum stability on hollow metal or wood doors, we recommend the use of thru bolts to ensure a "sandwich-style" attachment that will not loosen over time under constant use. While this model is "Exit Only," it is fully compatible with a wide variety of Exit Device Trim, including the 210F, 420F, and 440F series for exterior access requirements.
| General - US Finishes | 689 - Spray Alumimun or 695 - Spray Dark Bronze |
| Door Opening Width | 36 Inches or 48 Inches |
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - 1800 Series |
| Exit Device Type | Rim Exit Device |
| Exit Device Fire Rating | Non Rated Door |
