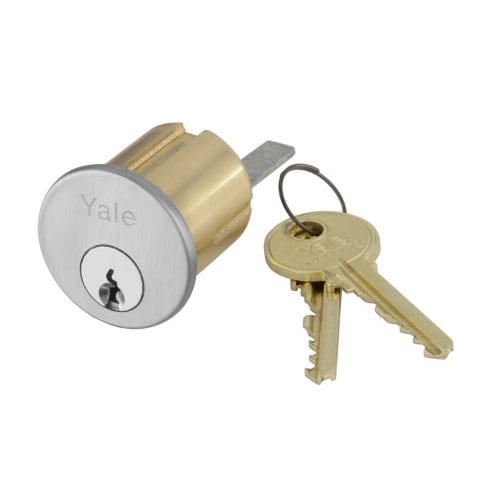

Accentra 1109 Rim Cylinder – 6-Pin High-Security Keyed Entry
*** Only PARA and GA keyways are stocked; other keyways are available by quote only at this time. ***
Accentra 1109 Rim Cylinders (formerly Yale) are the industry standard for high-performance security on doors equipped with exit devices, panic bars, and rim locks. This 6-pin keyed cylinder is engineered for precision and durability, providing reliable access control for commercial storefronts, back-of-house exits, and institutional facilities.
Available in professional-grade US26D Satin Chrome or US10B Oil Rubbed Bronze, the Accentra 1109 is designed to withstand heavy-use environments while maintaining a clean, architectural aesthetic. Whether you are replacing a worn cylinder or performing a fresh installation on a new panic bar, this Commercial Door Hardware component ensures smooth mechanical operation and long-term security.
Function Info: Rim Cylinder (1109/2109)
- Versatile Application: Primarily used for operating rim-mounted exit devices (panic bars) and surface-mounted deadbolts from the exterior of the door.
- Horizontal Tailpiece: Features a standard horizontal tailpiece designed to engage with the exit device’s internal cam or actuator.
- Keyway Options: Choose between the classic Yale PARA or GA keyways (1109) or the widely compatible Schlage C keyway (2109) to match your existing master key system.
- Keyed Random: Furnished as Keyed Random (KR), making it ready for immediate installation right out of the box.
Key Features & Performance
- 6-Pin Security: The 6-pin cylinder mechanism provides superior pick resistance and a higher number of unique key bittings compared to standard 5-pin residential cylinders.
- Architectural Finishes: Available in Brushed Chrome (US26D) for a modern look or Oil Rubbed Bronze (US10B) to match traditional or upscale hardware schedules.
- Cylinder Collar Included: Supplied with the 1765.25 cylinder collar (1/4" thickness) to ensure a flush, secure fit against the door face.
- Solid Brass Construction: Manufactured from solid brass to prevent corrosion and ensure the threads and internal chambers remain precise over millions of cycles.
- Institutional Reliability: Meets the rigorous standards required for high-traffic schools, hospitals, and office complexes.
Technical Specifications
| Feature | Specification |
| Model Number | 1109 (Yale Keyway) / 2109 (Schlage C) |
| Cylinder Type | Rim Cylinder |
| Pinning | 6-Pin Standard |
| Keying | Keyed Random (KR) |
| Finish Options | US26D (Satin Chrome) / US10B (Oil Rubbed Bronze) |
| Tailpiece | Standard Horizontal Tailpiece |
| Included Accessories | 1765.25 (1/4" Trim Ring) |
| Material | Solid Brass |
| General - US Finishes | 626 - Satin Chrome or US10BE - Oil Rub Bronze Equal |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway or Yale GA Keyway |
| Cylinder Type | Rim Cylinder |
| Brand | Accentra (formally Yale Security) |
| Key Length | 6 Pin, 5 Pin |
