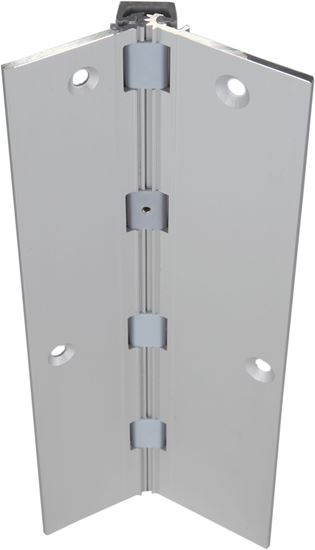

ABH A111HD-83 HingeKing Concealed Continuous Geared Hinge
The ABH A111HD-83 is a heavy-duty, full mortise continuous hinge designed for a seamless, concealed installation in both new construction and demanding renovation projects. Featuring a 1/8" door inset, this hinge is specifically engineered to provide a clean, professional look while effectively covering up old butt hinge cutouts in existing frames. By distributing the door's weight evenly across the entire frame, the A111HD eliminates sagging and binding, even on high-traffic doors weighing up to 450 lbs.
Key Features & Benefits
- Precision 1/8" Inset: Provides a clean, recessed appearance between the door and frame, ideal for standard commercial door configurations.
- Renovation Ready: The perfect solution for retrofitting; its wide leaf design hides unsightly butt hinge damage and reinforces the opening without requiring complex mortising.
- Heavy-Duty Capacity: Engineered to support doors up to 48" wide and 450 lbs, ensuring smooth operation under constant use.
- Field-Trimmable: The 83" length can be cut down to 79" in the field without damaging bearings or altering mounting hole integrity.
- Fire-Rated Certified: UL listed for 90-minute metal fire doors and 60-minute wood fire doors, keeping your facility compliant with life-safety codes.
| Feature | Specification |
| Mounting Type | Full Mortise / Concealed |
| Door Inset | 1/8" |
| Max Door Weight | 450 lbs |
| Max Door Width | 48" |
| Material | Extruded 6063-T6 Aluminum with Polyacetal Bearings |
| Fasteners | 12-24 x 7/8" Self-Drilling TEK Machine Screws |
Why Choose the A111HD for Your Facility?
The A111HD is built for longevity. Its geared design features polyacetal thrust bearings that provide a smooth 180° swing and a high degree of security by removing the pry gap between the door and frame. Whether you are installing a new door or rescuing a failing frame, the A111HD provides a permanent, maintenance-free solution that outlasts traditional hardware.
| General - US Finishes | US28 - 628/ Anodized Aluminum or 313 - Dark Bronze Anodized |
| Brand | ABH Mfg |
| Hinge Type | Full Mortise, Continuous Hinge |
| Continuous Hinge Height | 83 Inch (7/0 Dr) |
| Continuous Hinge Grade | Heavy Duty |
