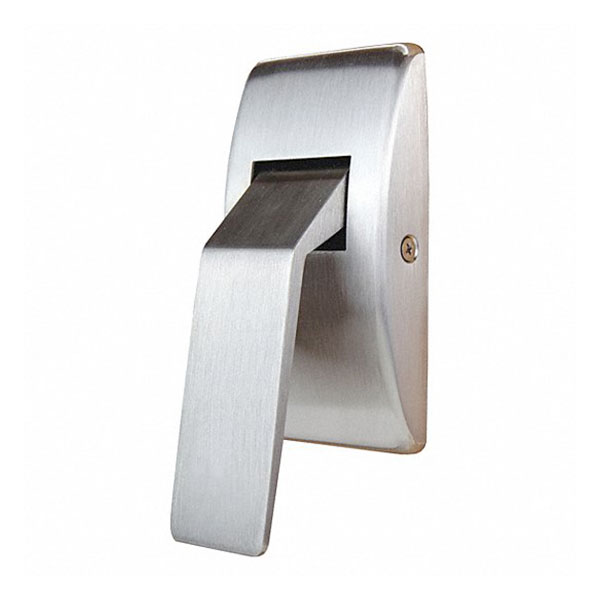

ABH 6811 Low Profile Push/Pull Latchset – Satin Stainless Steel

The ABH Manufacturing 6811 Low Profile Push/Pull Latchset delivers a clean, architectural solution for commercial doors where a traditional lever or knob set would project too far or create a visual obstruction. Built in satin stainless steel, this push/pull latchset is engineered for high-traffic institutional and commercial openings — including offices, schools, healthcare facilities, and government buildings — where durability, low maintenance, and a refined appearance are all required.

ABH Manufacturing is a respected name in commercial architectural hardware, appearing in industry cross-reference standards alongside Markar, McKinney, and Pemko. The 6811 is purpose-built for openings where a low-profile push/pull format provides a practical, code-conscious alternative to full-projection hardware trim.

Key Benefits

• Low-profile design — minimal projection from the door face reduces snag hazards and suits high-traffic corridors
• Satin stainless steel finish — resists corrosion and surface wear; easy to clean in demanding environments including healthcare and educational facilities
• Push/pull latch function — allows passage from either side without a key, ideal for interior commercial openings where free egress and entry are required
• Architectural-grade construction — suited for commercial and institutional door applications requiring long-term serviceability
• Compatible with standard commercial hollow metal and wood doors — verify door prep requirements before ordering

Typical Applications

• Interior office and corridor doors in commercial buildings
• School and university classroom or hallway doors
• Healthcare facility interior passage doors
• Government and municipal building interiors
• Retail and hospitality interior openings requiring a low-profile aesthetic

Technical Details

Note: Specifications beyond those listed above were not provided in available product data. For detailed dimensional drawings, door prep requirements, or specification documents, contact DoorwaysPlus for technical support. Comparable push/pull latchset options from preferred lines such as Rockwood and Hager are also available — ask about alternatives if your project requires a specific series or finish not listed here.

The ABH 6811 is an architectural-grade low profile push/pull latchset designed for high-frequency use in healthcare, institutional, and commercial settings. Often utilized as the primary solution for door restoration in hospitals and clinics, this latchset features a specialized Push Down / Pull Up handle orientation that allows for effortless, hands-free operation. Crafted from heavy-duty stainless steel, the 6811 model provides a sleek, modern aesthetic while serving as a robust solution for commercial door convenience and universal accessibility.

Specialized Design for Healthcare & High-Traffic Access

The ABH 6811 is engineered to simplify door transitions for staff, patients, and visitors, making it an essential component for facility-wide hardware upgrades:

• Ergonomic Push Down / Pull Up Action: This specific configuration is optimized for Left Hand (LH) doors (though field-reversible), allowing users to easily open the door with an elbow or hip—a vital solution for door surface repair and superior hygiene protocols in sterile environments.
• Low Profile Architectural Trim: With a minimal cover projection of only 7/8", the 6811 significantly reduces the footprint on the door face. This prevents the hardware from catching on passing hospital stretchers, equipment carts, or pedestrians in narrow corridors.

• ADA Compliant Operation: Requires less than 5 lbs of force to activate, ensuring the opening remains fully accessible and compliant with all ADA requirements.

• Patented Linear Acting Cam: Features a high-efficiency internal cam (Patent #7,258,374) that provides a smoother, more fluid motion compared to traditional pivot-style latches, reducing mechanical friction and user effort.


Heavy-Duty Structural Stability

The ABH 6811 is a Grade 1 component built to withstand the constant stress of 24/7 institutional use. It serves as a robust solution for door edge reinforcement through its superior mounting architecture:

• Four Thru-Bolt Security: To ensure the unit remains rigid and aligned, the trim is mounted using four thru bolts. This creates a high-strength "sandwich" connection that prevents the hardware from sagging or pulling loose, even in high-abuse environments.

• Corrosion-Resistant Stainless Steel: Finished in US32D (630), the 6811 is naturally resistant to oxidation and aggressive medical-grade disinfectants, ensuring a long-lasting architectural appearance.

• Field-Reversible Handing: The internal cam holder assembly can be easily reversed in the field, providing a flexible solution for door restoration if room functions or door swings change post-installation.

• UL Fire Rated Protection: Listed in the U.S. and Canada for use on fire-rated doors (up to 90 minutes), ensuring safety compliance is maintained in critical life-safety openings.


Technical Details & Specifications

• Brand: ABH Manufacturing
• Model: 6811 (Low Profile Series)

• Operation: Push Down / Pull Up
• Finish: US32D / 630 (Satin Stainless Steel)

• Standard Door Thickness: 1-3/4” (Custom thicknesses available)

• Backset: 2-3/4” Standard (3-3/4”, 5”, and 7” options available)

• Mounting: Four-Bolt Thru-Bolt Design

• Certifications: ANSI/BHMA Grade 1, ADA Compliant, UL Listed


Why Choose the ABH 6811?

When your facility requires the durability of a hospital-grade latch without the acoustic dampening of the quiet series, the ABH 6811 is the definitive choice. Its low profile design and heavy-duty thru-bolt stability make it a permanent solution for door restoration. It offers the perfect balance of tactile feedback and effortless access, ensuring that your commercial doors remain secure, compliant, and easy to operate for every user.
