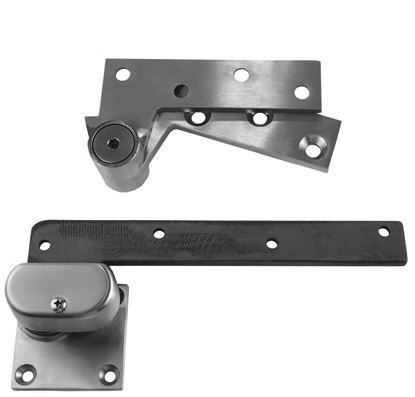

ABH 0147 Heavy-Duty 3/4" Offset Pivot Set | Floor Mounted US32D Stainless Steel

The ABH 0147 is an architectural-grade, high-capacity 3/4" offset pivot set engineered for demanding commercial environments. By utilizing a floor mounted design, this pivot set shifts the door's weight load from the frame directly to the floor, making it the premier solution for commercial door security and structural longevity. Finished in premium US32D Satin Stainless Steel, the 0147 model is a definitive solution for door restoration in high-traffic lobbies, institutions, and professional office suites.

Superior Weight Capacity and Floor-Based Support

The ABH 0147 is specifically designed to handle oversized and heavy doors that standard hinges cannot support. It serves as a proactive solution for door surface repair by eliminating frame stress and sagging:

• High-Weight Performance: Capable of supporting interior doors up to 4'0" x 8'0" and exterior doors up to 3'6" x 7'0", with a massive weight capacity of up to 600 lbs.

• Direct Weight Distribution: The 3/4" offset design ensures that the majority of the door's weight is distributed onto the floor rather than the jamb. This prevents the door from pulling on the frame, providing a permanent solution for door restoration.
• Versatile Undercut Clearance: Straight from the box, the 0147 handles an undercut of up to 1". For maximum clearance, the bottom arm is surface mounted to the door’s underside; for a more concealed look, it can be mortised.

• Vertical Alignment Control: Features a 3/16" vertical arm adjustment that can be accessed after installation. This allows for precision tuning to ensure the door is perfectly plumb and clears flooring obstacles.

Industrial-Grade Construction and Reliability

Built to withstand the rigors of 24/7 institutional use, the ABH 0147 is a robust solution for door edge reinforcement and maintenance-free operation:

• Heavy-Duty Bearing System: Equipped with precision-engineered bearings to ensure smooth, quiet rotation even under the stress of 600 lb loads.

• Architectural Stainless Steel: The US32D (630) finish provides a high-end aesthetic while offering superior corrosion resistance and durability against harsh cleaning chemicals.

• Stability with Thru-Bolt Security: To ensure a rigid connection to the door, this set is compatible with thru bolts, which create a "clamping" effect that prevents the hardware from loosening over time.
• Flexible Flooring Adaptability: While the bottom pivot is surface mounted to the floor, custom spindle heights are available for projects involving ramps, sloped floors, or thick tile and marble transitions.

Technical Details & Specifications

• Brand: ABH Manufacturing
• Model: 0147 (Floor Mounted Offset Set)
• Offset: 3/4" (Face of door to centerline of pivot)

• Weight Limit: 600 lbs

• Finish: US32D / 630 (Satin Stainless Steel)
• Vertical Adjustment: 3/16"
• Certifications: BMHA/ANSI C07131/3530A (Modified)
• Fasteners: Included mix of 1/4-20 x 3/4" machine screws and #14 x 1-1/2" wood screws

Why Choose the ABH 0147?

When your project requires the highest weight capacity and long-term durability, the ABH 0147 is the industry-leading solution for commercial door security. Its floor-mounted design and thru bolt compatibility make it a reliable solution for door restoration that protects the integrity of your door frames for years to come.
