SOSS 218PT Heavy Duty Power Transfer Invisible Hinge for 1-3/4 Inch Minimum Door Thickness
SOSS 218PT Heavy Duty Power Transfer Invisible Hinge for 1-3/4 Inch Minimum Door Thickness
SOSS 218PT Power Transfer Invisible Hinge for 1-3/4″ Minimum Door Thickness, UL Listed, 20-Minute Fire-Rated

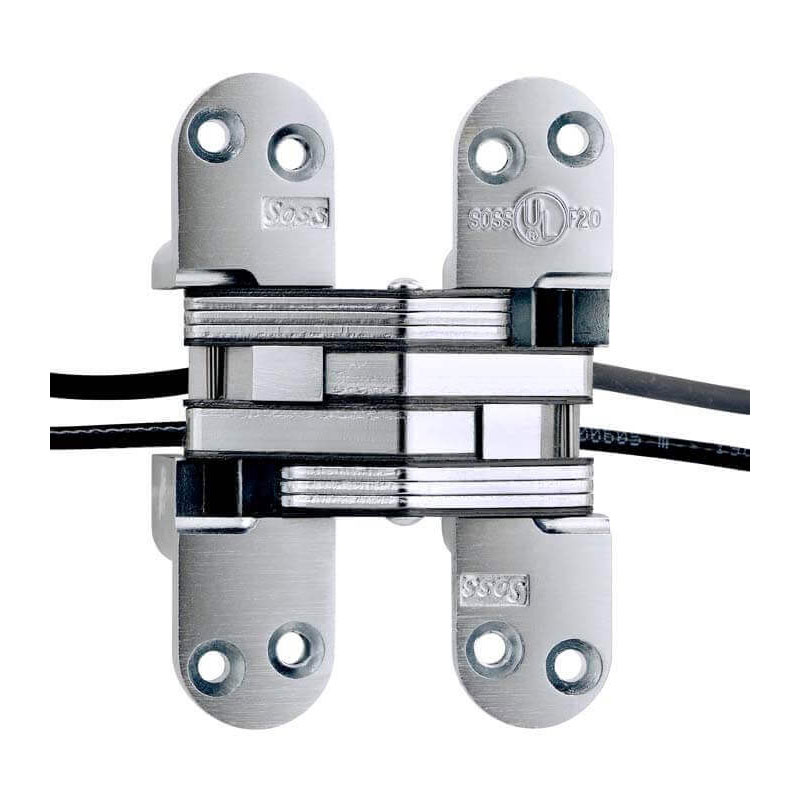

The SOSS Power Transfer Hinge provides a unique solution for delivering electrical power through the hinge itself. The SOSS® Invisible Hinge model #218PT is specifically engineered for use in wood or metal doors that measure 1-3/4″ in thickness. This model is constructed from a combination of zinc and steel, and it incorporates nylon links for enhanced strength and durability. As a full-sized hinge, it not only offers a sleek appearance but also ensures long-lasting performance. SOSS® Invisible Hinges are ideal for applications that require a flush fit, compact design, and smooth functionality, allowing for a full 180° opening as a single action hinge.
Certified by Underwriters Laboratories, the model #218PT SOSS® Invisible Hinge is suitable for installation on hollow metal, sheet metal, tin clad, steel composite, or wood core swinging fire doors and frames with a 20-minute fire rating.
For safety compliance, it is recommended to install at least one fire-rated hinge for every 20 inches of door height or for every 60 pounds of door weight, depending on which calculation requires more hinges.
The SOSS® Power Transfer Hinges are compatible with four or six wire configurations, with a maximum capacity of 2.5 amperes at 24 volts of direct current. If your application demands more than 2.5 amps, the SOSS® Power Transfer Hinge should not be used.

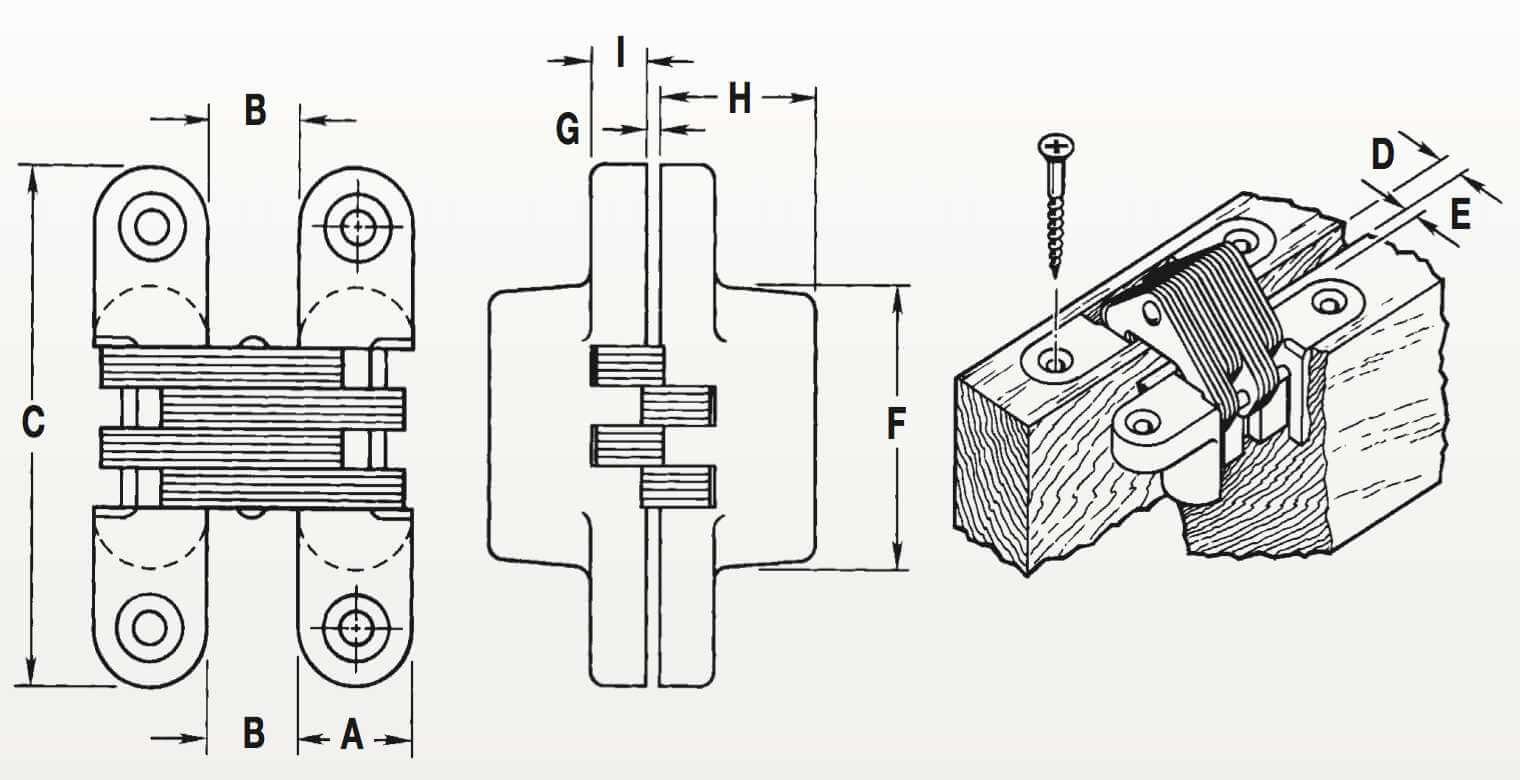

Dimensions
| A | 1-1/8″ (28.58mm) |
| B | 7/8″ (22.23mm) |
| C | 4-5/8″ (117.48mm) |
| D | 3/8″ (9.53mm) |
| E | 1/4″ (6.35mm) |
| F | 2-15/32″ (11.91mm) |
| G | 1/16″ (1.59mm) |
| H | 1-41/64″ (41.67mm) |
| I | 13/32″ (10.32mm) |
| Min. Matl. Thickness | 1-3/4″ (44.45mm) |
| Wood Screw Sizes | #10×1-1/2″ (4.8x38mm) |
| Soft Wood Pilot Hole | No. 43 |
| Hard Wood Pilot Hole | No. 31 |
| Machine Screw Sizes | #10-24×1″ |
| Hinge Weight | 1.95 lb. |
Additional Information
| Application | Full Sized Entry, Metal, Wood |
|---|---|
| Min. Material Thickness | 1-3/4″ |
| Fire Rating | 20 Minutes |
| Power Transfer | 2.5A |
| Closer | No |
| Counter Bored Screw Holes | No |
| Screws Included | Wood and Machine |
| Packaging | 1 / Box = 1 Each |
| Packages Per Container | 1 Each |
| Price Per | Each |
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US5 - Blackened Satin Brass or US14 - Polished Nickel or US19 - Flat Black or US10BL - Oil Rubbed Bronze Lacquered |
| Brand | SOSS |
| Hinge Type | Invisible, Electric Hinge |
| Base Material | Steel |
| Door Thickness | 1-3/4" Dr Thickness, 2" Dr Thickness |
| Electric Hinge Options | Power Transfer, 4 Wire |
| Fire Rated | Fire Rated |
