Sargent 700113-ETL-26D Vertical Rod Multi Point Lock, 84"- 96" Door Height, Blank Plate x Key Outside Unlocks or Locks Exit Trim
$ 1,922.31
$ 1,922.31
Sargent 700143-ETL-26D Vertical Rod Multi Point Lock, 84"- 96" Door Height, Blank Plate x Free Wheeling Key Engages and Disengages Lever
$ 1,922.31
$ 1,922.31Sargent 700115-ETL-26D Vertical Rod Multi Point Lock, 84"- 96" Door Height, Blank Plate x Passage Exit Trim
Sargent 700115-ETL-26D Vertical Rod Multi Point Lock, 84"- 96" Door Height, Blank Plate x Passage Exit Trim
Lead Time: 3-4 Weeks

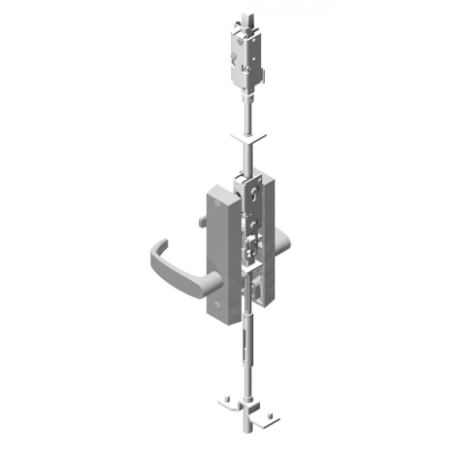

Sargent 700115-ETL-26D Vertical Rod Multi Point Lock for 84"- 96" Door Height
- Inside Function: 01 - Blank Escutcheon Plate
- Exterior Function: 15 - Passage Function - Lever Always Unlocked
Are you in need of a flexible and trustworthy multi-point lock? The 7000 Series concealed vertical rod offers exactly that, boasting 36 functions compatible with numerous door styles. Its heavy-duty construction guarantees exceptional strength and durability, making it well-suited for challenging environments such as commercial, educational, and healthcare facilities.
- Concealed rods offer additional security by making it much more difficult for would-be intruders to tamper with or force entry. Hidden within the door itself, these rods are not exposed to the outside, reducing points of vulnerability and maintaining a clean, uninterrupted appearance.
Specifications:
- For Doors: Metal doors, 1-3/4" (44mm) door thickness standard, 3-7/8" minimum stile, 2-1/4" backset standard
- Mounting: Supplied fasteners are for metal doors with through-bolts for trim
- Hand: Field reversible; specify RHR, LHR, RH or LH
- Top and Bottom Bolts: Stainless steel Top and bottom bolt travels 7/16" (11mm) Projection adjustable up to 1" (25mm)
- Latching: Top and bottom (7000, 12-7000) or Top only (NB-7000, 12-NB-7000)
- Trim: ET, ER & ES Controls are available with all lever designs 100 Series Auxiliary Control offer cylinder override for 01, 10, 40, 73
- & 74 function devices
- Functions: 01, 06, 10, 13, 15 , 16, 40, 43, 46 Freewheeling 73, 74, Electrical+
- Strikes: Standard - 650 Top Strike and 606 Bottom Strike
- Cylinder: #41 Mortise Cylinder (1-1/8" Length)
Features:
- Designed for metal door applications with 2-1/4" Backset
- Concealed rods offer additional security
- Less bottom rod option available, specified as NB-7000 and 12-NB-7000
- NB- provides free access for wheel chairs and carts
- Single or double door applications
- UL Fire Listed: 12-7000 / 12-NB-7000 (12-NB- is for double door applications only)
- UL Certified to ZHEM R21744 (HC and WS option)
Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture below to your opening for clarification.
**** Note: Door Handing Information is needed ****
What Is a Fire-Rated Vertical Rod Multipoint Lock, and How Does It Work?
If safety and reliability are top priorities in your facility, a fire-rated vertical rod multipoint lock could be exactly what you need. Think of it as a robust locking system designed for metal doors—one that not only secures your entryway at multiple points (top and bottom) but also passes rigorous fire safety standards like UL certification.
Typically, these locks feature concealed rods, which give you an added layer of security by making forced entry much more difficult—while maintaining a sleek, unobtrusive look. For buildings where accessibility matters (think hospitals or schools), certain models come with “less bottom rod” options to allow free, unobstructed entry for wheelchairs and carts.
Typical Functions
- Exterior Operation: The key unlocks the trim and retracts the latch, allowing entry. Once the key is removed, the trim automatically relocks, ensuring your doorway isn’t left unsecured.
- Interior Operation: A passage function usually means the inside lever provides free egress at all times—no need for keys or special knowledge to exit.
- Versatile Applications: These locks can be used on either single or double doors, with specific configurations for each case.
- Fire-Rated Assurance: Certified fire ratings (like those from UL) assure you that the lock not only guards against intrusion, but also holds up in case of fire, keeping doors latched to slow the spread of smoke and flames.
Whether you’re outfitting a bustling school hallway or a high-traffic hospital entrance, a fire-rated vertical rod multipoint lock provides peace of mind—both for durability and compliance.
| General - US Finishes | US26D - Satin Chrome or US10BE - Oil Rub Bronze Equal |
| Left/Right Handed | LHR - Left Hand Reverse or RHR - Right Hand Reverse |
| Sargent Multi Point Prefixes | NB - No Bottom Rod or 53 - Top Bolt Monitoring or 54 - Outside Lever Monitoring or ELR - Electric Latch Retraction or HC - Hurricane Code or WS - Windstorm Certified or Tall Door - 96" - 120" Door Height |
| Brand | Sargent |
| Series | Sargent 7000 Series |
| Trim Design | ETL |
| Multi Point Interior Function | 01 - Blank Plate |
| Multi Point Exterior Function | 15 - Passage - Lever Always Unlocked |
| Door Height | 7'0" Dr Ht, 8'0" Dr Ht |
