Sargent 1431 P10 Door Closer with Heavy Duty Parallel Arm
Sargent 1431 PS Door Closer with Positive Stop Arm
Lead Time: 2-7 Business Days

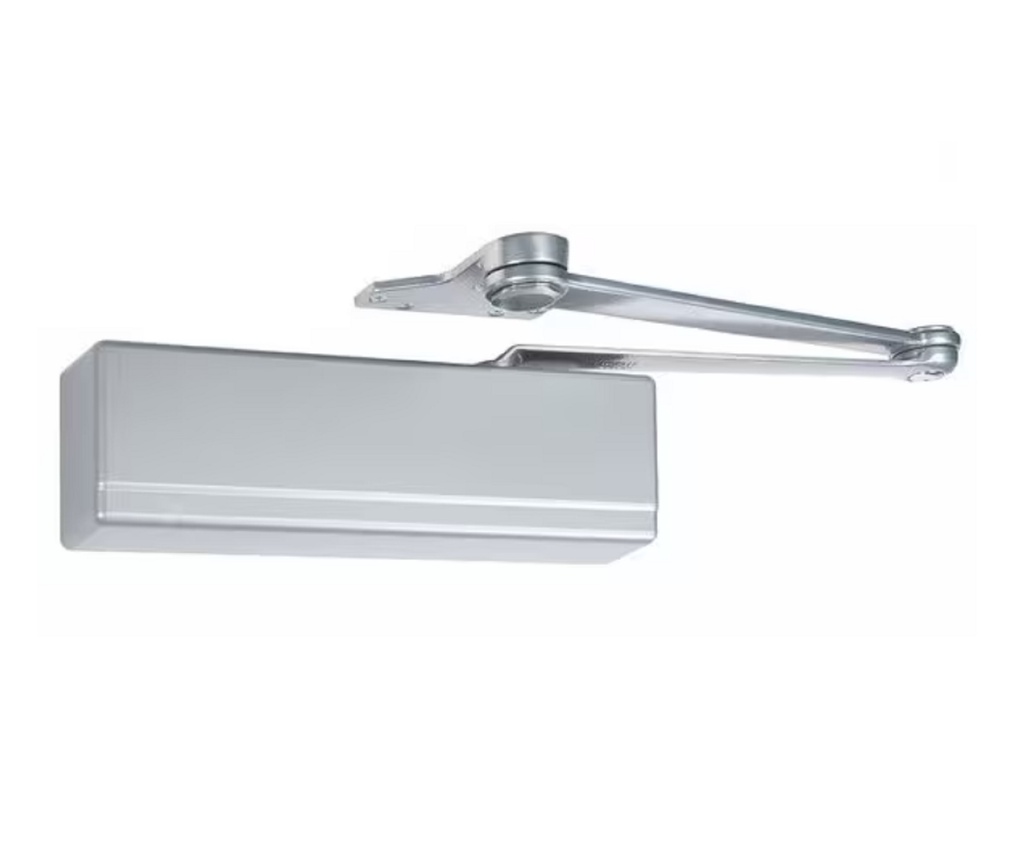

Sargent 1431 P10 Door Closer with Heavy Duty Parallel Arm
Features:
- Certified ANSI/BHMA A156.4 Grade 1
- Conforms to UL10C and UBC for positive pressure fire test
- UL Listed and cUL Listed to Canadian Safety Standards listed for use on fire doors
- 25 year limited warranty
- User friendly versatile mounting applications permit standard, top jamb, parallel and track installations
- Self sticking templates supplied for most applications
- Adjustable spring power allows 1431 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory
- One door closer body for all applications. All 1431 are non-handed.
- Meets ADA requirements in all applications, except Push Side Track application (except track)
- High impact non-corrosive plastic covers with two machine screws standard, metal covers and lead lined are optional
- All weather fluid allows closer to operate effectively in extreme temperatures without readjustment
- 1-1/2" diameter piston for superior door control
- Standard pressure relief valves for both opening and closing cycles protect the door & frame from damage caused by abuse
- Retrofits existing SARGENT 1230/1231 Series Closer installations
- 3 offered finishes: EN = Aluminum Enamel, EB = Dark Bronze Enamel, EAB = Brass Enamel
Heavy Duty Construction:
- Heat treated full rack and pinion for high strength & wear resistance
- Heavy duty one piece high silicon content aluminum alloy body provides corrosion resistance, superior strength and wear resistance
- 1/2" arm engagement over a 7/16 square spindle ensures a wear-resistant tight joint
- Fasteners: Machine Screws and self tapping screws provided for closer and arm
- In addition, wood screws supplied when installed on wood doors with through bolts Valves
- Separate brass low sensitivity control valves offer ability to separately regulate door speed, latching, backcheck and optional delayed action
- All valves are captured to prevent accidental removal, adjustable with an 1/8" Allen wrench
- Adjustable backcheck protects the door and hardware from damage during the opening cycle
- Adjustable delayed action (optional) permits easy access for physically impaired individuals
Full Complement of Arm Types:
- Standard and parallel arms
- Push and pull track arms
- Heavy duty forged steel arms are finely finished and interchangeable between SARGENT 281 and 1431, and 351 Series.
- The cold formed arms (RO/RP9) are unique to the 1431 Series, and are not interchangeable with other SARGENT closers.
Innovation
- SARGENT’s revolutionary MicroShield® available. This antimicrobial silver-based finish coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew. EPA and NSF approved and FDA listed.
| General - US Finishes | EN - Aluminum Enamel or EAB - Spray Gold or EB - Bronze Enamel |
| Brand | Sargent |
| Series | Sargent - 1430 Series |

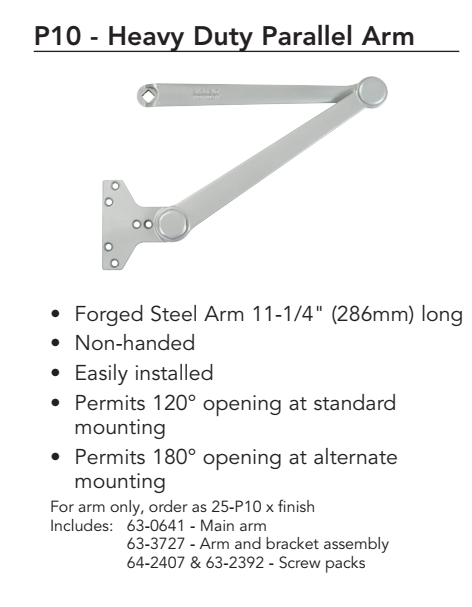

| Closer Arm Type | HD Parallel Arm |
| Hold Open | Non-Hold Open |
| Closer Body Hole Pattern | 11 1/8" x 1" |
